Z-UCF206D1-

Designations

Z-UCF206D1

Included products

Bearing	UC206D1		Bearing
Housing	F206D1		Housing

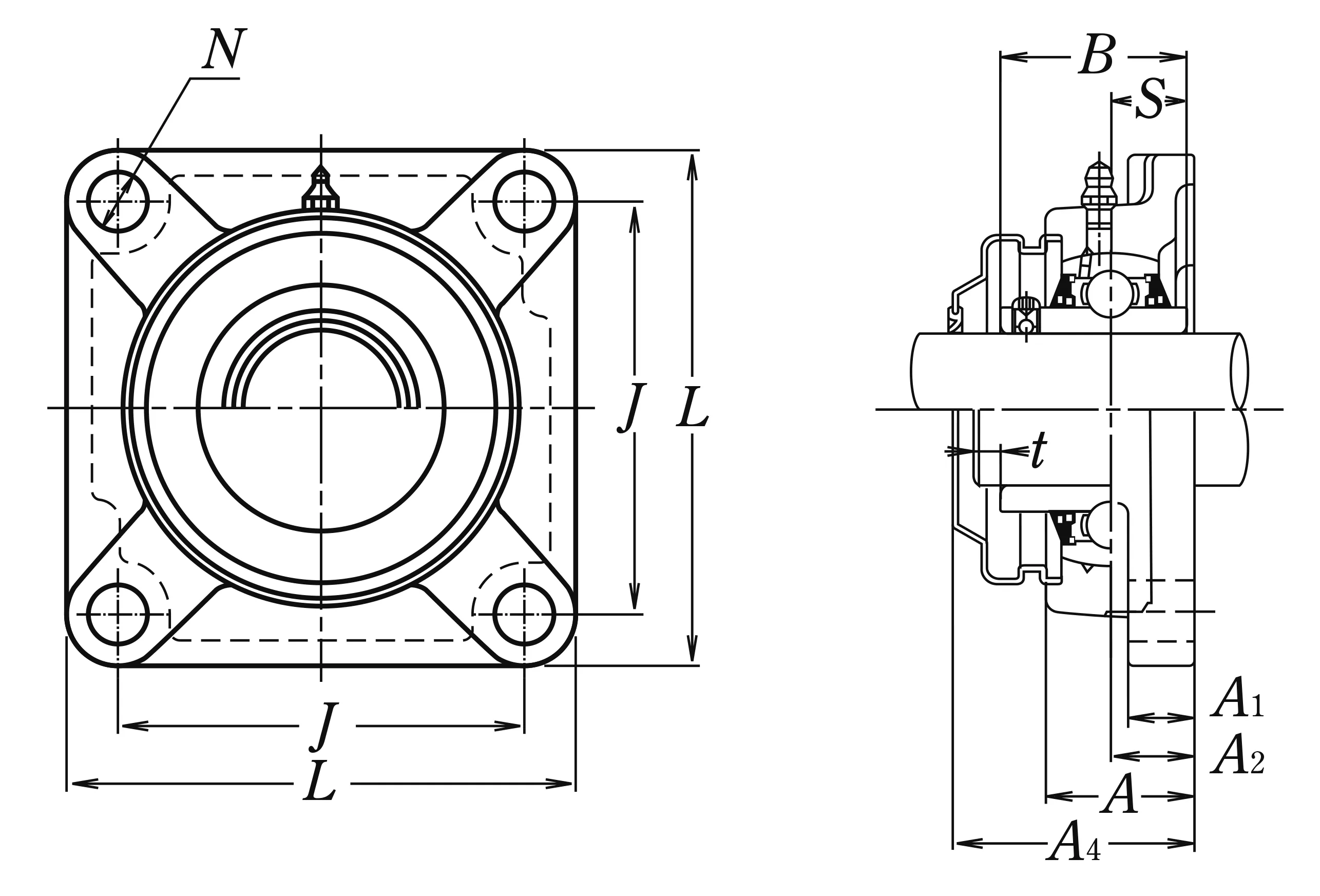

Nominal Dimensions

d	30	mm	Bore diameter
L	108	mm	Overall length
J	83	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	13	mm	Flange width
A	31	mm	Base width
A4	45	mm	Width including end cover
A0	40.2	mm	Overall width
B,B1,B2	38.1	mm	Width of inner ring
t	2	mm	Clearance
S	15.9	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.1

kg

Mass approx.
