CM-UKFS306D1-

Designations

CM-UKFS306D1

Included products

Bearing	UK306D1		Bearing
Housing	FS306D1		Housing

Associated products

Adapter sleeve

H2306X

Adapter sleeve

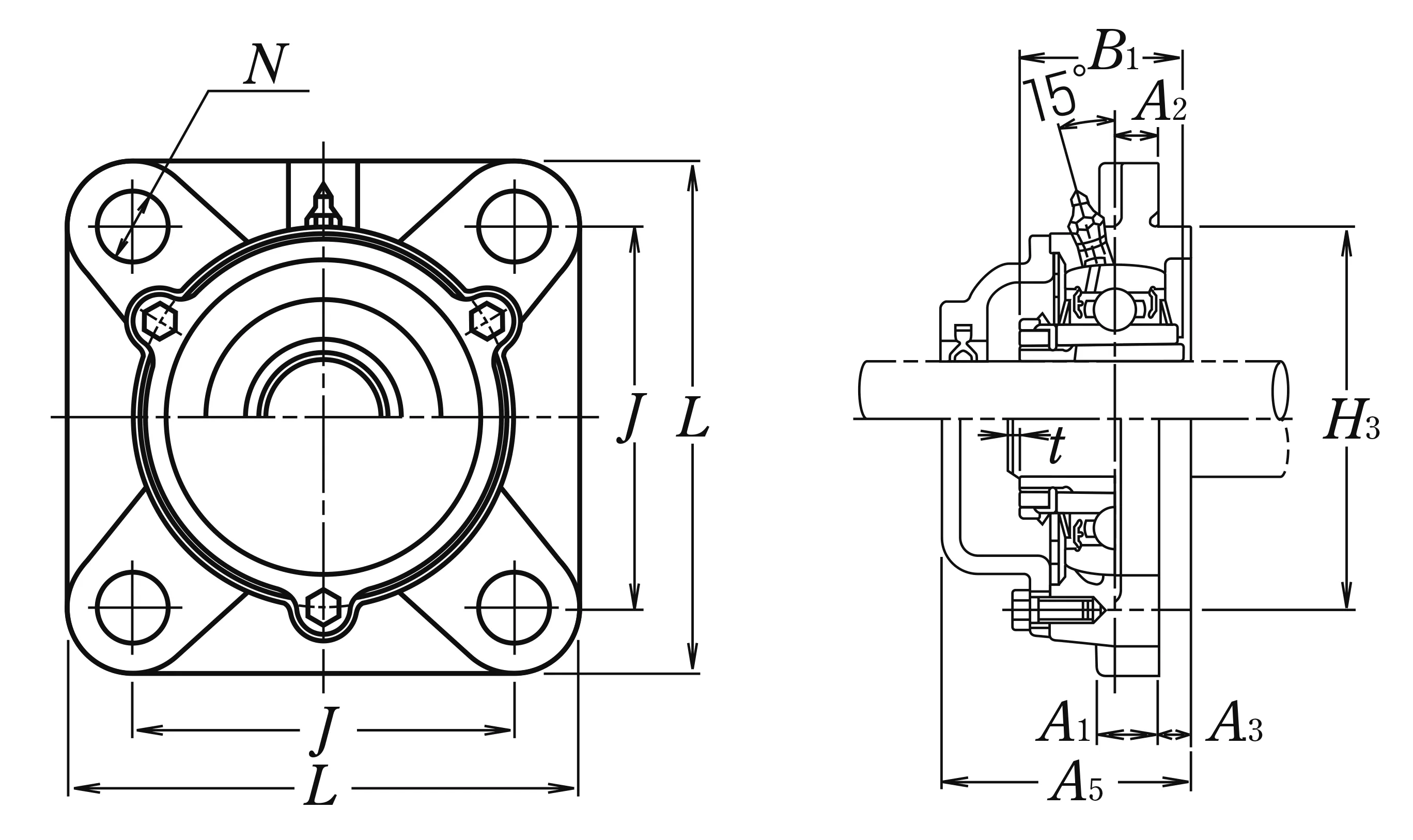

Nominal Dimensions

d	25	mm	Bore diameter
L	125	mm	Overall length
H3	90	mm	Outer diameter of Spigot Joint
J	95	mm	Distance between attachment bolts
A3	8	mm	Height of of Spigot Joint
A2	10	mm	Flange width
A1	15	mm	Flange width
A5	60	mm	Width including end cover
B,B1,B2	38	mm	Width of inner ring
t	2	mm	Clearance

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

mass

2.2

kg

Mass approx.
