UCPG328D1-

Designations

UCPG328D1

Included products

Bearing	UC328D1		Bearing
Housing	PG328D1		Housing

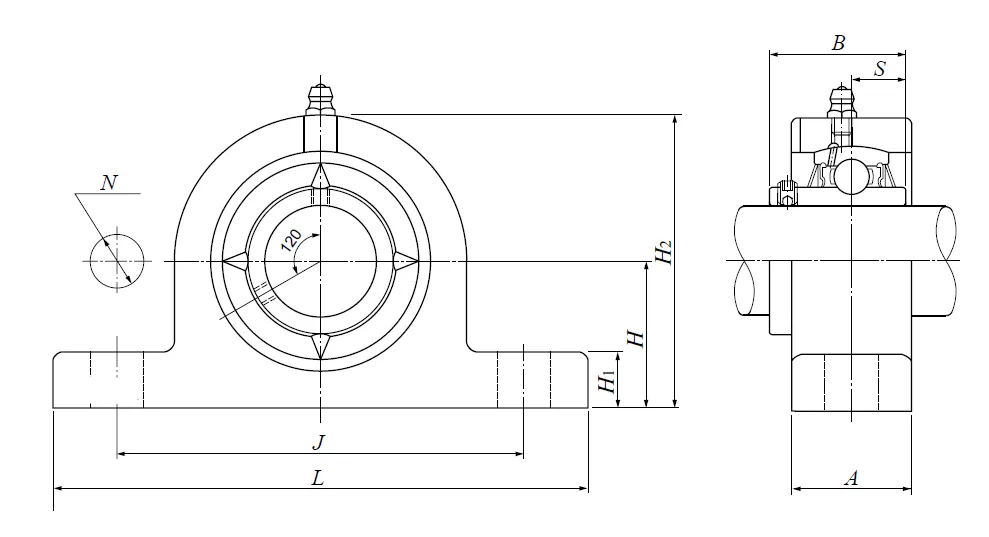

Nominal Dimensions

d	140	mm	Bore diameter
L	620	mm	Overall length
H	200	mm	Height of spherical seat centre
J	500	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A	110	mm	Base width
H1	75	mm	Distance between bottoms of piloting grooves
B	145	mm	Width of inner ring
S	59	mm	Distance from Opposite side face of locking device to raceway centre
H2	390	mm	Overall height

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	253	kN	Basic dynamic load rating
C0r	246	kN	Basic static load rating

Mass

mass

89

kg

Mass approx.
