UCIP326D1-

Designations

UCIP326D1

Included products

Bearing	UC326D1		Bearing
Housing	IP326D1		Housing

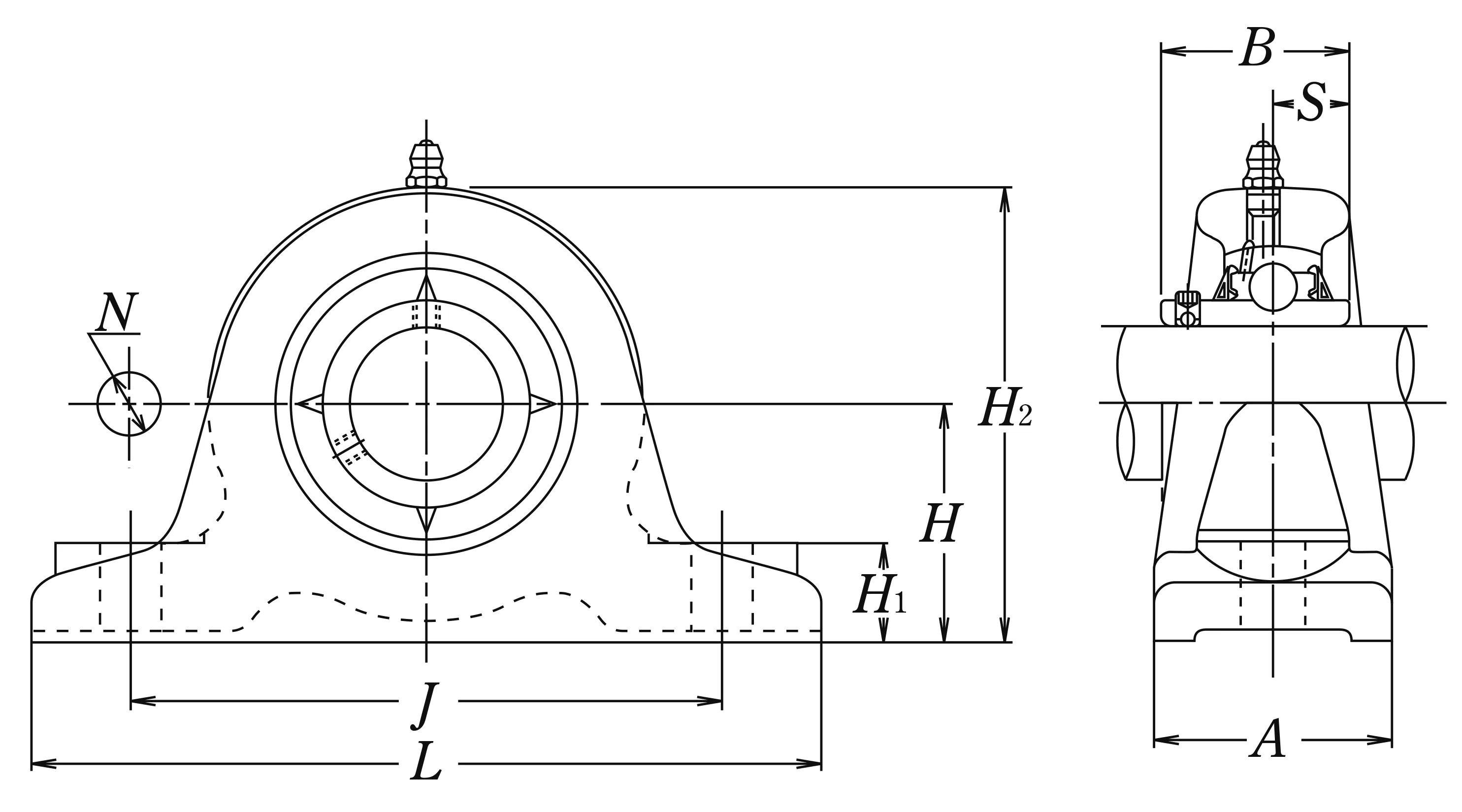

Nominal Dimensions

d	130	mm	Bore diameter
L	550	mm	Overall length
H	200	mm	Height of spherical seat centre
J	470	mm	Distance between attachment bolts
N	33	mm	Diameter of attachment bolt hole
A	110	mm	Base width
H1	50	mm	Distance between bottoms of piloting grooves
B	135	mm	Width of inner ring
S	54	mm	Distance from Opposite side face of locking device to raceway centre
H2	390	mm	Overall height

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	229	kN	Basic dynamic load rating
C0r	214	kN	Basic static load rating

Mass

mass

76

kg

Mass approx.
