UCPG326D1-

Designations

UCPG326D1

Included products

Bearing	UC326D1		Bearing
Housing	PG326D1		Housing

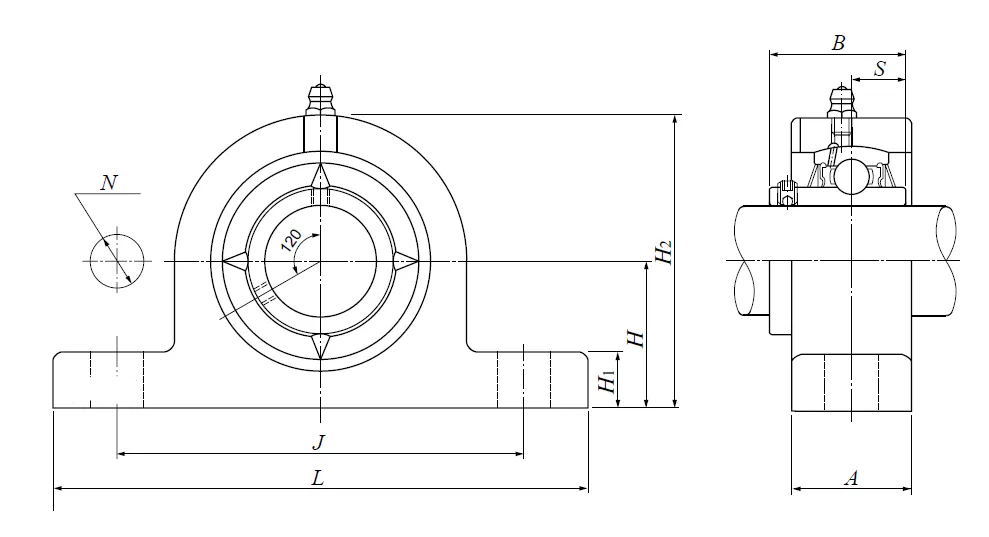

Nominal Dimensions

d	130	mm	Bore diameter
L	600	mm	Overall length
H	180	mm	Height of spherical seat centre
J	480	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A	110	mm	Base width
H1	75	mm	Distance between bottoms of piloting grooves
B	135	mm	Width of inner ring
S	54	mm	Distance from Opposite side face of locking device to raceway centre
H2	355	mm	Overall height

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	229	kN	Basic dynamic load rating
C0r	214	kN	Basic static load rating

Mass

mass

72

kg

Mass approx.
