UCPG322D1-

Designations

UCPG322D1

Included products

Bearing	UC322D1		Bearing
Housing	PG322D1		Housing

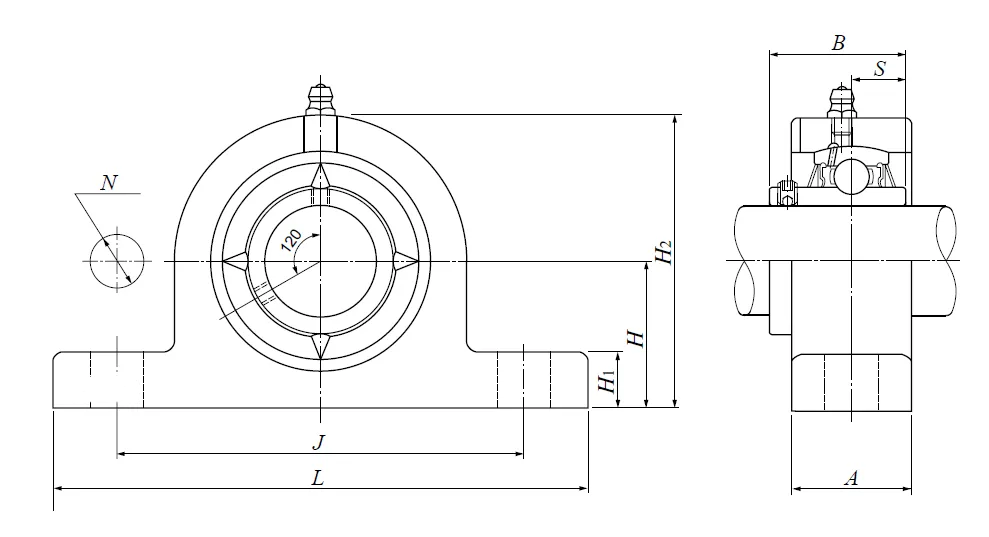

Nominal Dimensions

d	110	mm	Bore diameter
L	520	mm	Overall length
H	150	mm	Height of spherical seat centre
J	400	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A	100	mm	Base width
H1	55	mm	Distance between bottoms of piloting grooves
B	117	mm	Width of inner ring
S	46	mm	Distance from Opposite side face of locking device to raceway centre
H2	300	mm	Overall height

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	205	kN	Basic dynamic load rating
C0r	179	kN	Basic static load rating

Mass

mass

45

kg

Mass approx.
