UCIP319D1-

Designations

UCIP319D1

Included products

Bearing	UC319D1		Bearing
Housing	IP319D1		Housing

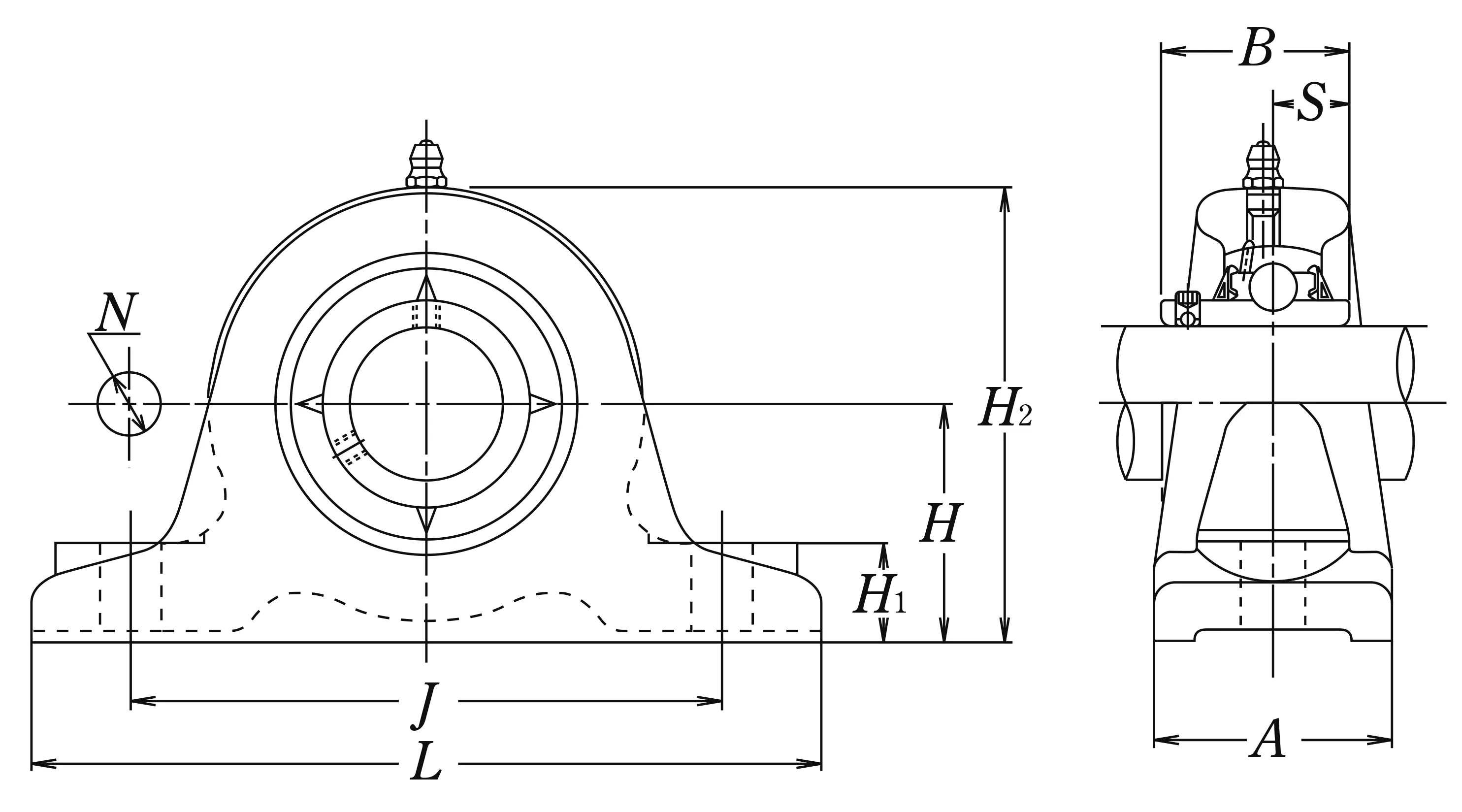

Nominal Dimensions

d	95	mm	Bore diameter
L	410	mm	Overall length
H	150	mm	Height of spherical seat centre
J	340	mm	Distance between attachment bolts
N	30	mm	Diameter of attachment bolt hole
A	85	mm	Base width
H1	45	mm	Distance between bottoms of piloting grooves
B	103	mm	Width of inner ring
S	41	mm	Distance from Opposite side face of locking device to raceway centre
H2	285	mm	Overall height

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	153	kN	Basic dynamic load rating
C0r	119	kN	Basic static load rating

Mass

mass

31

kg

Mass approx.
