UKIP320D1-

Designations

UKIP320D1

Included products

Bearing	UK320D1		Bearing
Housing	IP320D1		Housing

Associated products

Adapter sleeve

H2320X

Adapter sleeve

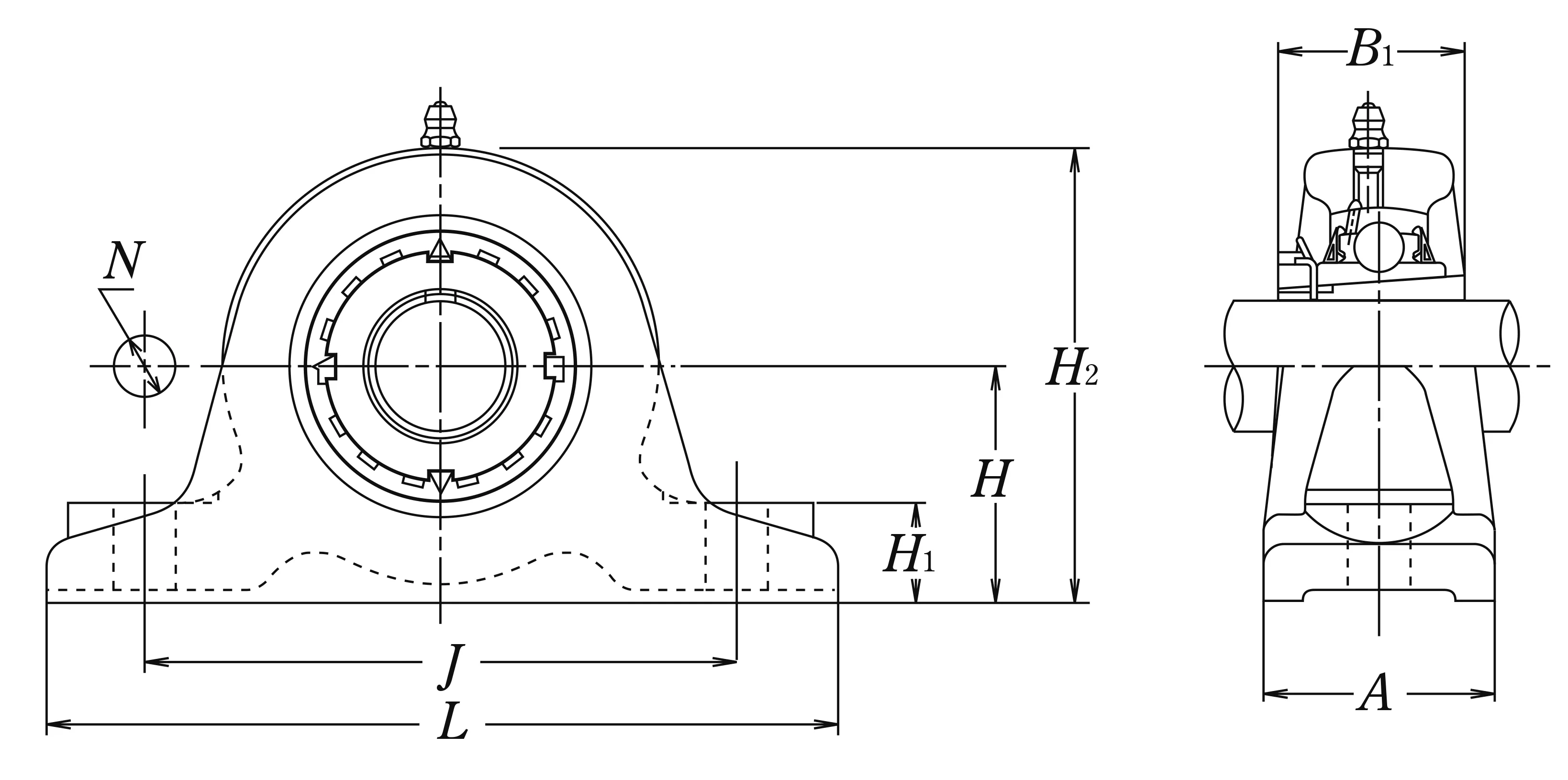

Nominal Dimensions

d	90	mm	Bore diameter
L	430	mm	Overall length
H	150	mm	Height of spherical seat centre
J	360	mm	Distance between attachment bolts
N	30	mm	Diameter of attachment bolt hole
A	85	mm	Base width
H1	45	mm	Distance between bottoms of piloting grooves
B1	97	mm	Width of inner ring
H2	295	mm	Overall height

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	173	kN	Basic dynamic load rating
C0r	141	kN	Basic static load rating

Mass

mass

35

kg

Mass approx.
