UCIP318D1-

Designations

UCIP318D1

Included products

Bearing	UC318D1		Bearing
Housing	IP318D1		Housing

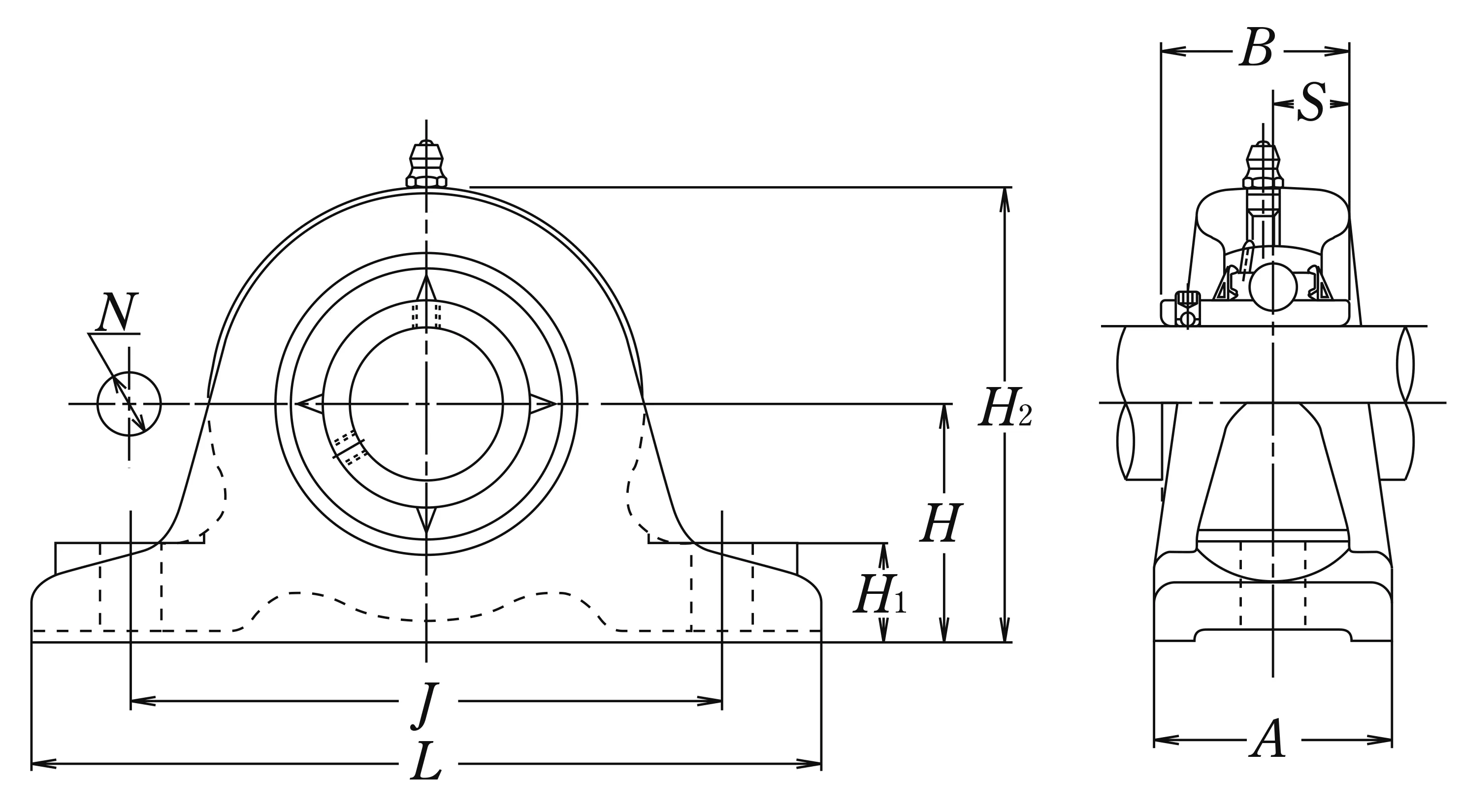

Nominal Dimensions

d	90	mm	Bore diameter
L	400	mm	Overall length
H	130	mm	Height of spherical seat centre
J	330	mm	Distance between attachment bolts
N	30	mm	Diameter of attachment bolt hole
A	85	mm	Base width
H1	45	mm	Distance between bottoms of piloting grooves
B	96	mm	Width of inner ring
S	40	mm	Distance from Opposite side face of locking device to raceway centre
H2	260	mm	Overall height

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

mass

27

kg

Mass approx.
