UCPG218D1-

Designations

UCPG218D1

Included products

Bearing	UC218D1		Bearing
Housing	PG218D1		Housing

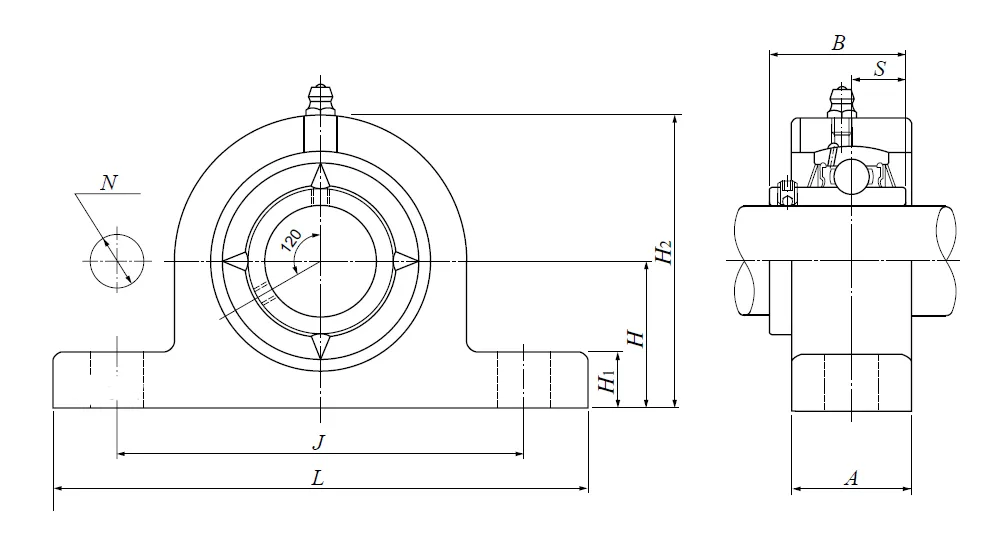

Nominal Dimensions

d	90	mm	Bore diameter
L	327	mm	Overall length
H	101.6	mm	Height of spherical seat centre
J	262	mm	Distance between attachment bolts
N	26	mm	Diameter of attachment bolt hole
A	65	mm	Base width
H1	33	mm	Distance between bottoms of piloting grooves
B	96	mm	Width of inner ring
S	39.7	mm	Distance from Opposite side face of locking device to raceway centre
H2	200	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	96	kN	Basic dynamic load rating
C0r	71.5	kN	Basic static load rating

Mass

mass

13

kg

Mass approx.
