UCPG317D1-

Designations

UCPG317D1

Included products

Bearing	UC317D1		Bearing
Housing	PG317D1		Housing

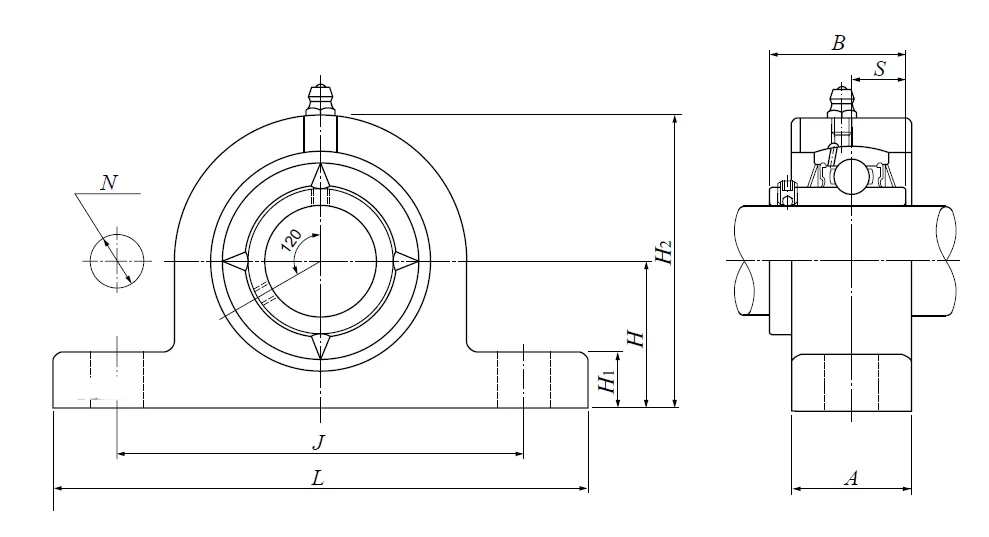

Nominal Dimensions

d	85	mm	Bore diameter
L	420	mm	Overall length
H	112	mm	Height of spherical seat centre
J	320	mm	Distance between attachment bolts
N	32	mm	Diameter of attachment bolt hole
A	80	mm	Base width
H1	40	mm	Distance between bottoms of piloting grooves
B	96	mm	Width of inner ring
S	40	mm	Distance from Opposite side face of locking device to raceway centre
H2	220	mm	Overall height

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	97	kN	Basic static load rating

Mass

mass

20

kg

Mass approx.
