UCIP316D1-

Designations

UCIP316D1

Included products

Bearing	UC316D1		Bearing
Housing	IP316D1		Housing

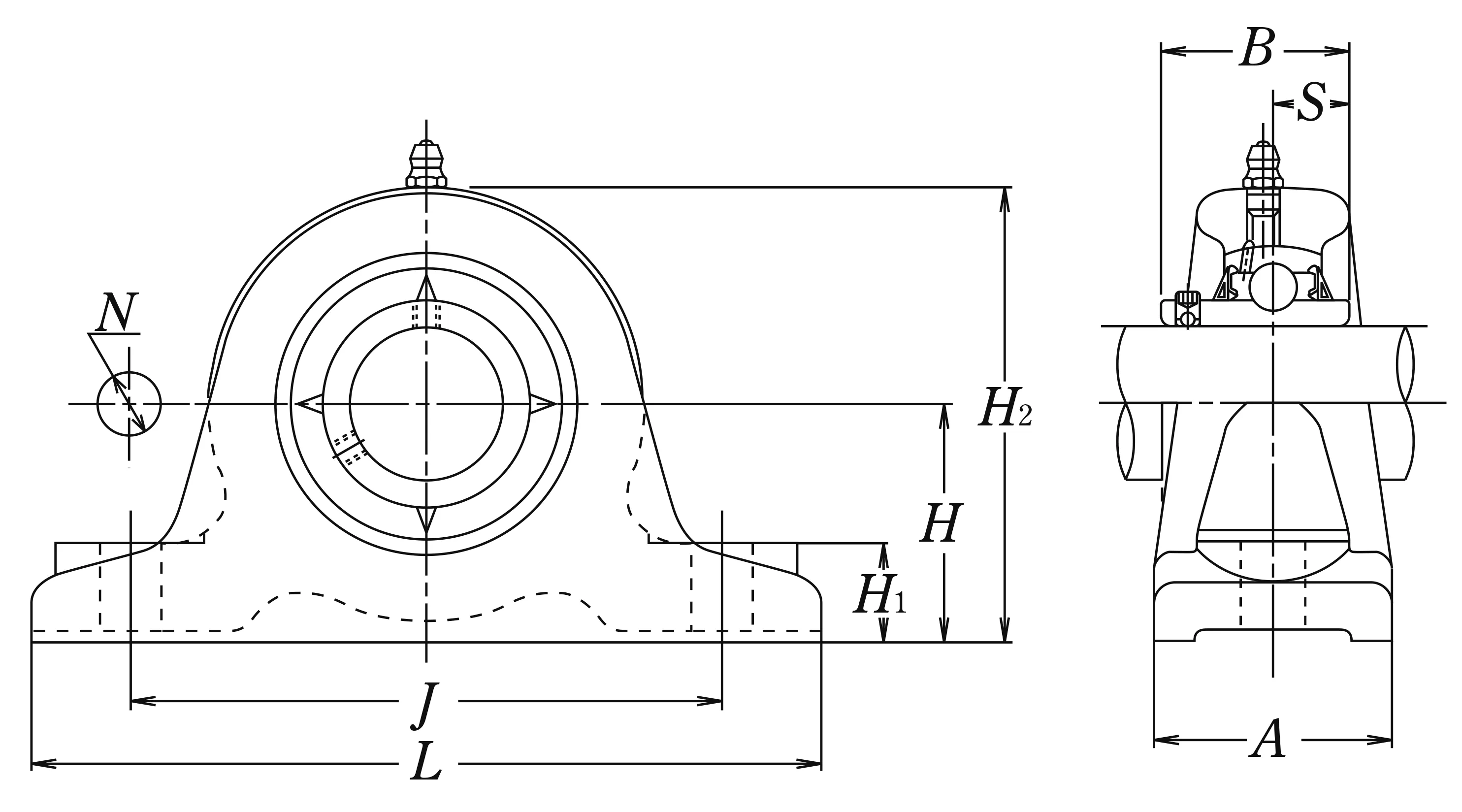

Nominal Dimensions

d	80	mm	Bore diameter
L	350	mm	Overall length
H	120	mm	Height of spherical seat centre
J	290	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A	85	mm	Base width
H1	40	mm	Distance between bottoms of piloting grooves
B	86	mm	Width of inner ring
S	34	mm	Distance from Opposite side face of locking device to raceway centre
H2	235	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

mass

20

kg

Mass approx.
