CM-UKP218D1-

Designations

CM-UKP218D1

Included products

Bearing	UK218D1		Bearing
Housing	P218D1		Housing

Associated products

Adapter sleeve

H2318X

Adapter sleeve

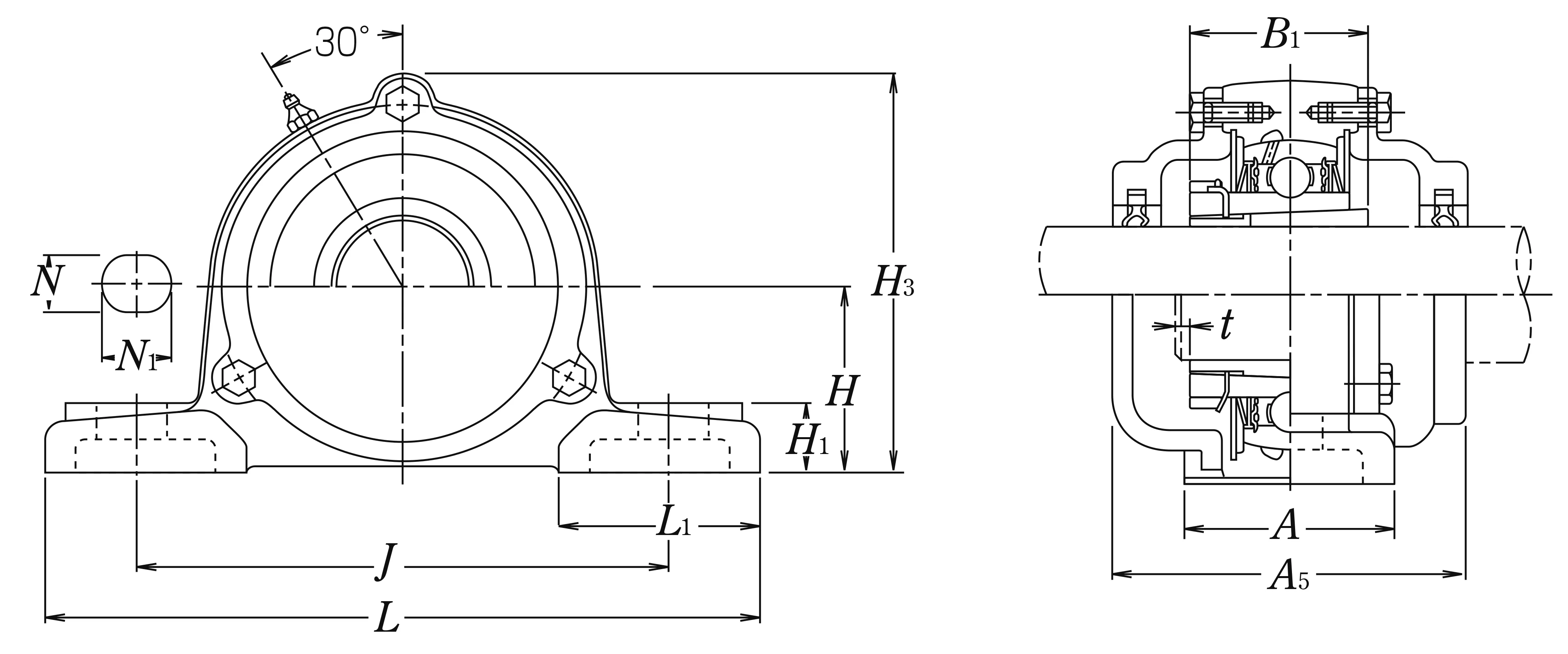

Nominal Dimensions

d	80	mm	Bore diameter
N1	30	mm	Length of attachment bolt hole
L	327	mm	Overall length
H	101.6	mm	Height of spherical seat centre
H3	204	mm	Overall height
J	262	mm	Distance between attachment bolts
N	27	mm	Diameter of attachment bolt hole
A	88	mm	Base width
A5	165	mm	Width including end cover
t	5	mm	Clearance
H1	33	mm	Distance between bottoms of piloting grooves
B1	86	mm	Width of inner ring
L1	90	mm	Foot width
H2	200	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	96	kN	Basic dynamic load rating
C0r	71.5	kN	Basic static load rating

Mass

mass

16

kg

Mass approx.
