UCPG215D1-

Designations

UCPG215D1

Included products

Bearing	UC215D1		Bearing
Housing	PG215D1		Housing

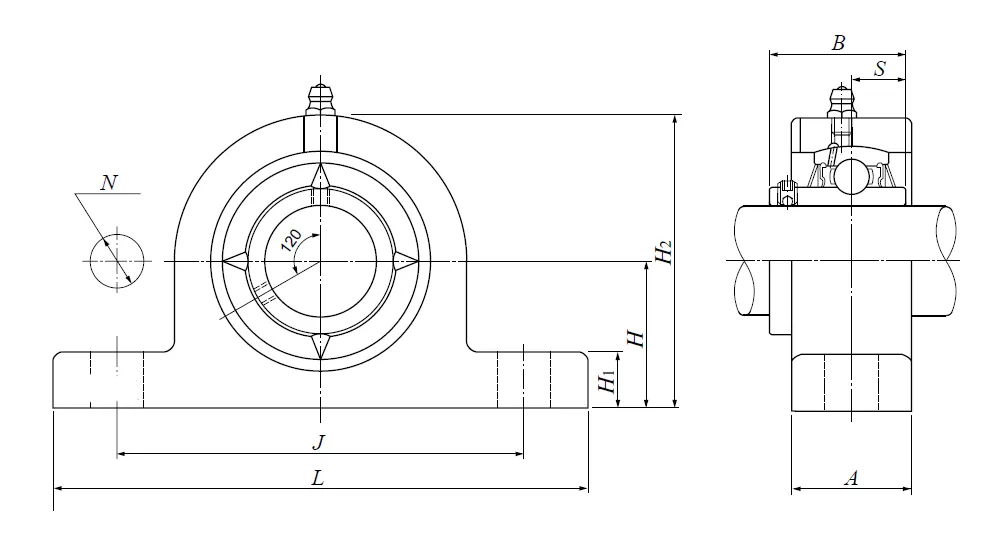

Nominal Dimensions

d	75	mm	Bore diameter
L	275	mm	Overall length
H	82.6	mm	Height of spherical seat centre
J	217	mm	Distance between attachment bolts
N	24	mm	Diameter of attachment bolt hole
A	55	mm	Base width
H1	28	mm	Distance between bottoms of piloting grooves
B	77.8	mm	Width of inner ring
S	33.3	mm	Distance from Opposite side face of locking device to raceway centre
H2	163	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	66	kN	Basic dynamic load rating
C0r	49.5	kN	Basic static load rating

Mass

mass

7.4

kg

Mass approx.
