UCIP314D1-

Designations

UCIP314D1

Included products

Bearing	UC314D1		Bearing
Housing	IP314D1		Housing

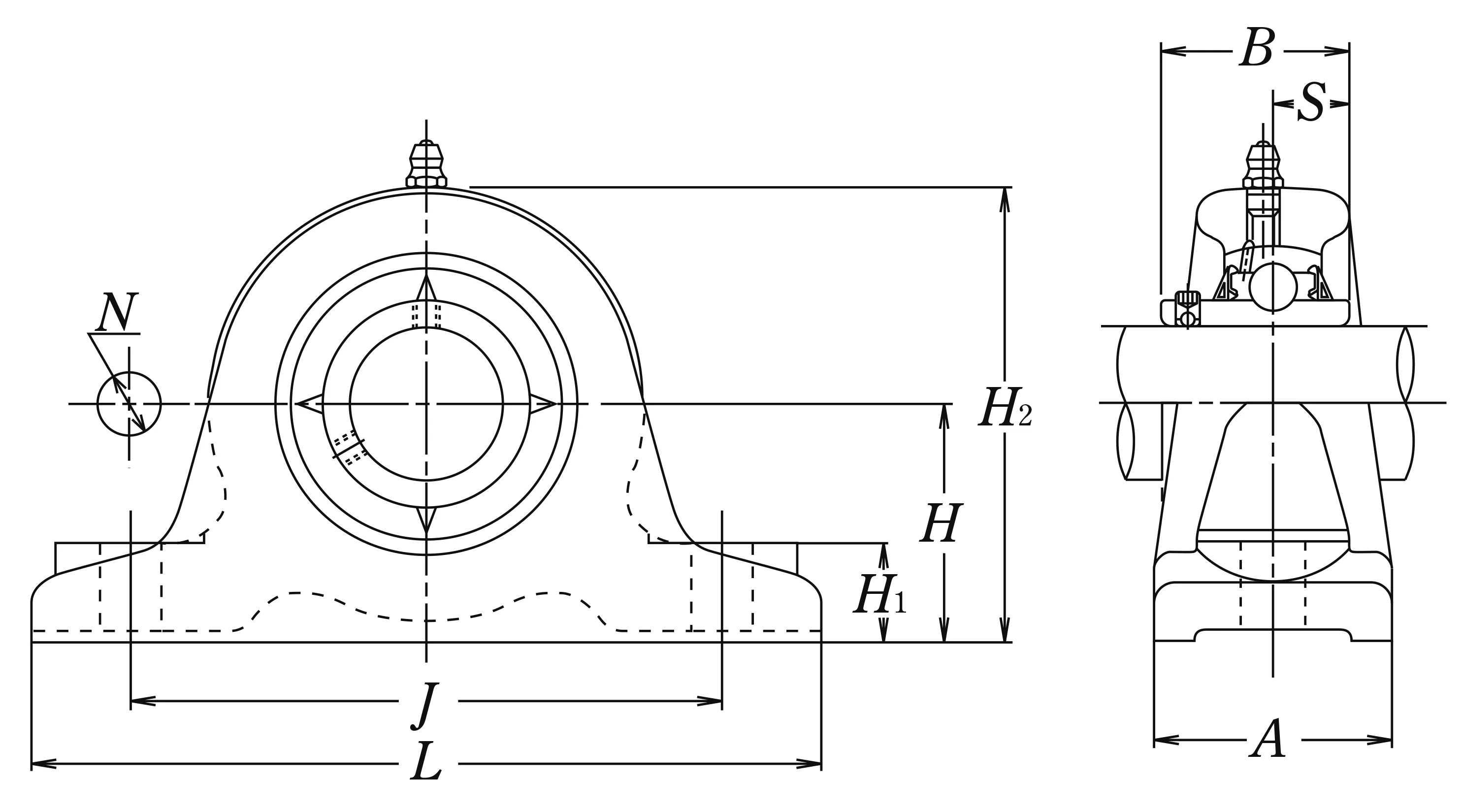

Nominal Dimensions

d	70	mm	Bore diameter
L	330	mm	Overall length
H	110	mm	Height of spherical seat centre
J	270	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A	75	mm	Base width
H1	35	mm	Distance between bottoms of piloting grooves
B	78	mm	Width of inner ring
S	33	mm	Distance from Opposite side face of locking device to raceway centre
H2	215	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	104	kN	Basic dynamic load rating
C0r	68	kN	Basic static load rating

Mass

mass

15

kg

Mass approx.
