UKP316D1-

Designations

UKP316D1

Included products

Bearing	UK316D1		Bearing
Housing	P316D1		Housing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

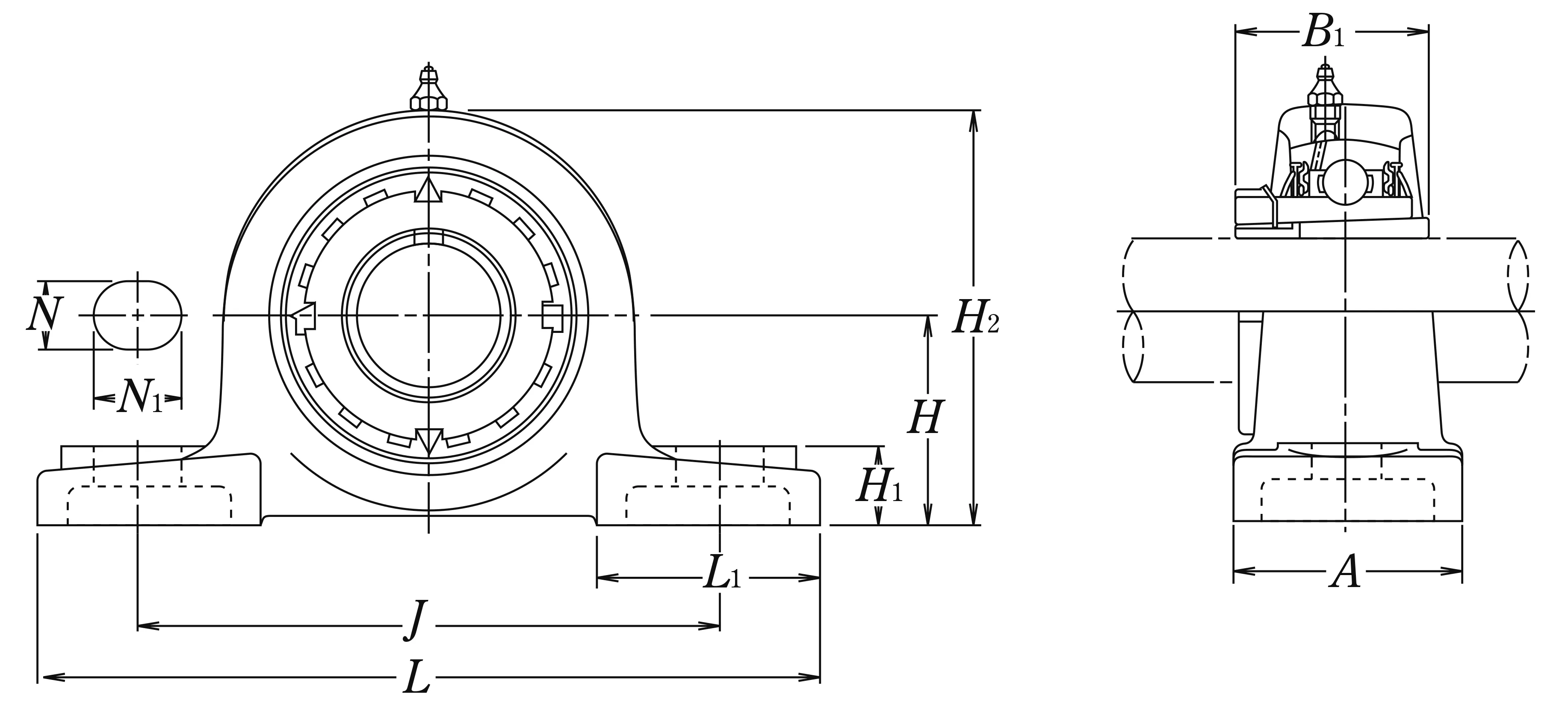

Nominal Dimensions

d	70	mm	Bore diameter
N1	40	mm	Length of attachment bolt hole
L	400	mm	Overall length
H	106	mm	Height of spherical seat centre
J	300	mm	Distance between attachment bolts
N	27	mm	Diameter of attachment bolt hole
A	110	mm	Base width
H1	40	mm	Distance between bottoms of piloting grooves
B1	78	mm	Width of inner ring
L1	110	mm	Foot width
H2	210	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

mass

17

kg

Mass approx.
