UCPG214D1-

Designations

UCPG214D1

Included products

Bearing	UC214D1		Bearing
Housing	PG214D1		Housing

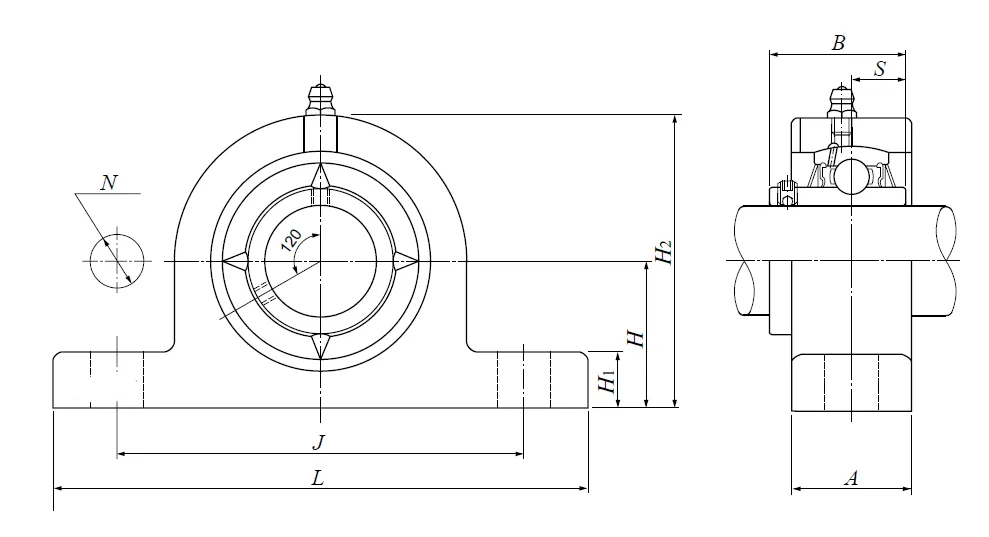

Nominal Dimensions

d	70	mm	Bore diameter
L	266	mm	Overall length
H	79.4	mm	Height of spherical seat centre
J	210	mm	Distance between attachment bolts
N	24	mm	Diameter of attachment bolt hole
A	55	mm	Base width
H1	27	mm	Distance between bottoms of piloting grooves
B	74.6	mm	Width of inner ring
S	30.2	mm	Distance from Opposite side face of locking device to raceway centre
H2	157	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	44	kN	Basic static load rating

Mass

mass

6.6

kg

Mass approx.
