UCIP313D1-

Designations

UCIP313D1

Included products

Bearing	UC313D1		Bearing
Housing	IP313D1		Housing

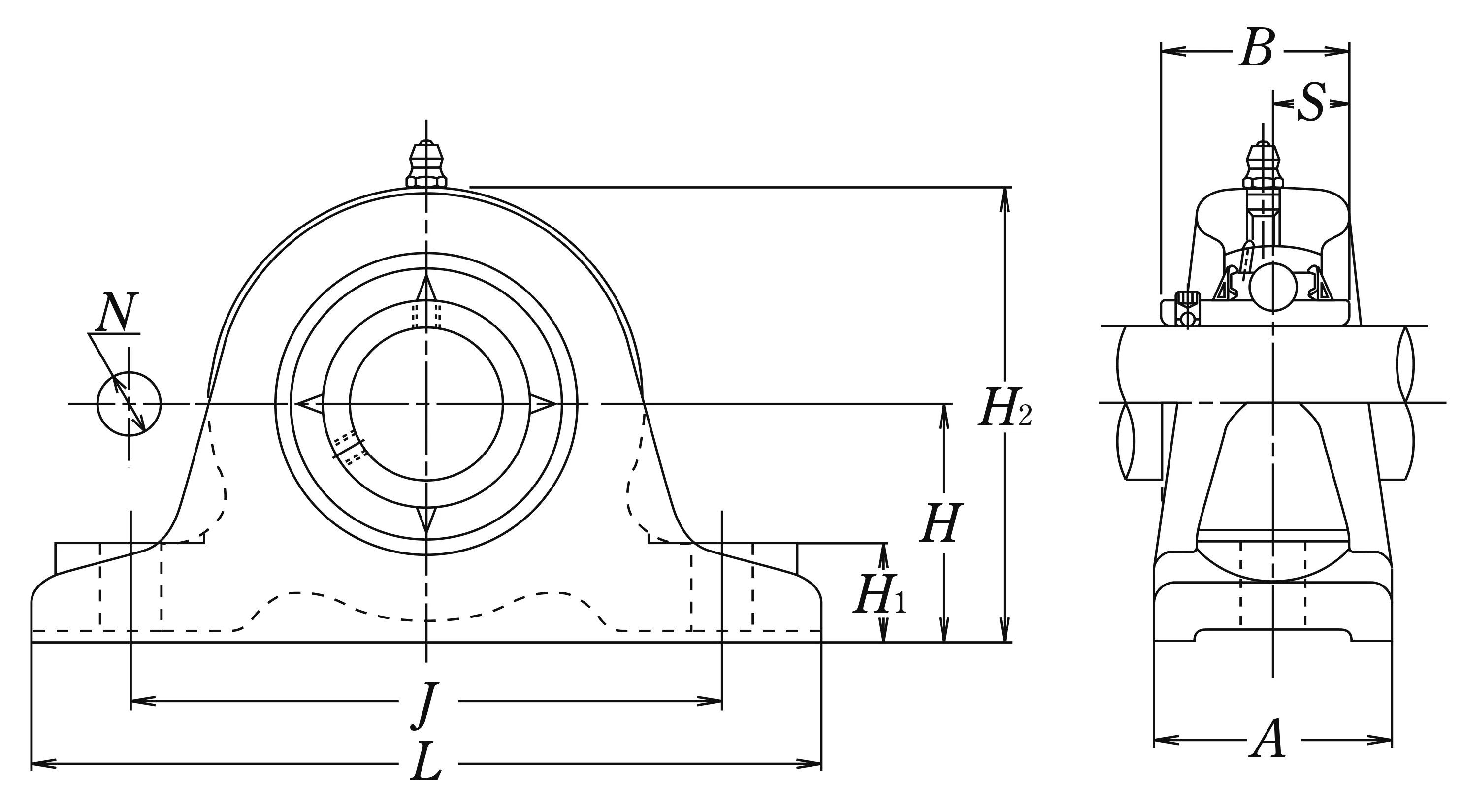

Nominal Dimensions

d	65	mm	Bore diameter
L	310	mm	Overall length
H	110	mm	Height of spherical seat centre
J	250	mm	Distance between attachment bolts
N	22	mm	Diameter of attachment bolt hole
A	70	mm	Base width
H1	30	mm	Distance between bottoms of piloting grooves
B	75	mm	Width of inner ring
S	30	mm	Distance from Opposite side face of locking device to raceway centre
H2	208	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	92.5	kN	Basic dynamic load rating
C0r	60	kN	Basic static load rating

Mass

mass

13

kg

Mass approx.
