UKP315D1-

Designations

UKP315D1

Included products

Bearing	UK315D1		Bearing
Housing	P315D1		Housing

Associated products

Adapter sleeve

H2315X

Adapter sleeve

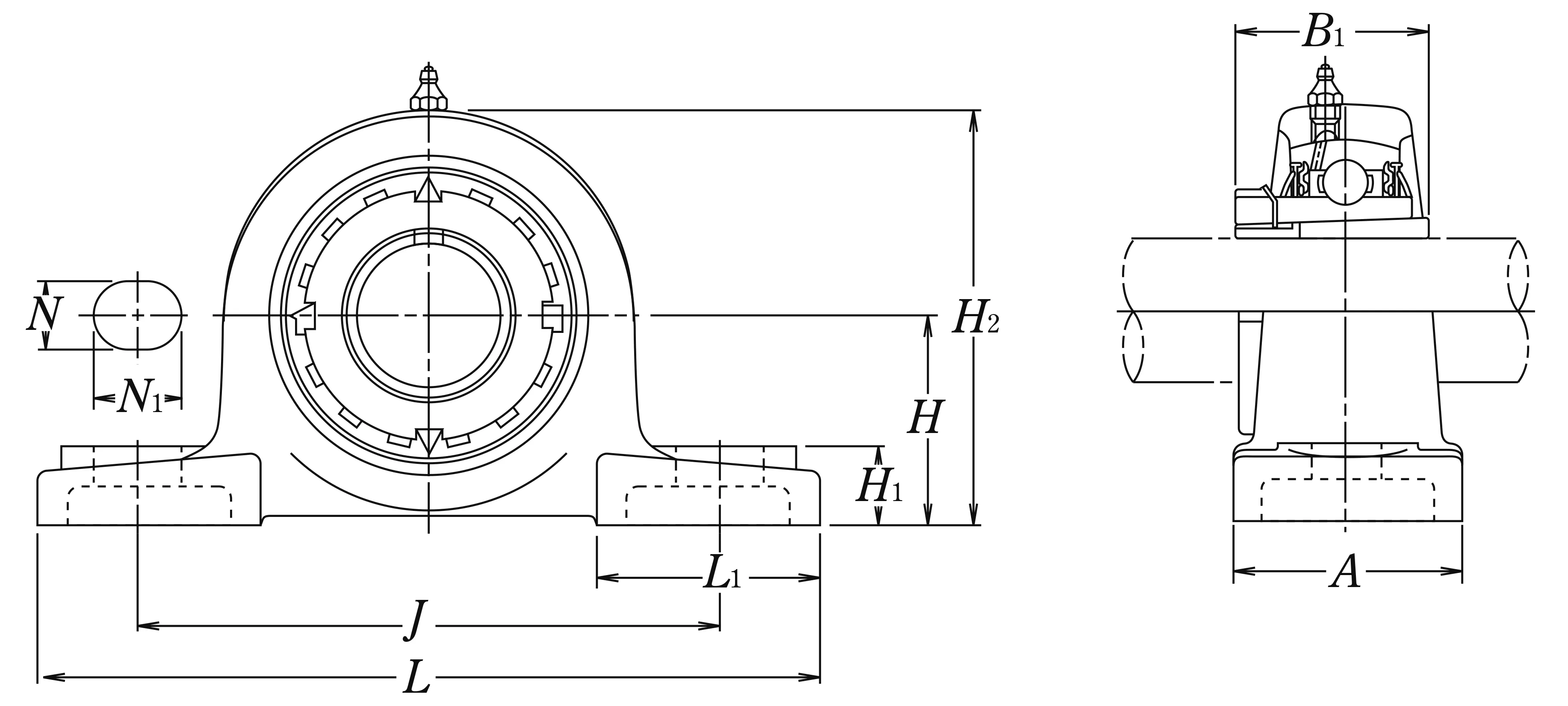

Nominal Dimensions

d	65	mm	Bore diameter
N1	40	mm	Length of attachment bolt hole
L	380	mm	Overall length
H	100	mm	Height of spherical seat centre
J	290	mm	Distance between attachment bolts
N	27	mm	Diameter of attachment bolt hole
A	100	mm	Base width
H1	35	mm	Distance between bottoms of piloting grooves
B1	73	mm	Width of inner ring
L1	110	mm	Foot width
H2	198	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

mass

14

kg

Mass approx.
