UCPG313D1-

Designations

UCPG313D1

Included products

Bearing	UC313D1		Bearing
Housing	PG313D1		Housing

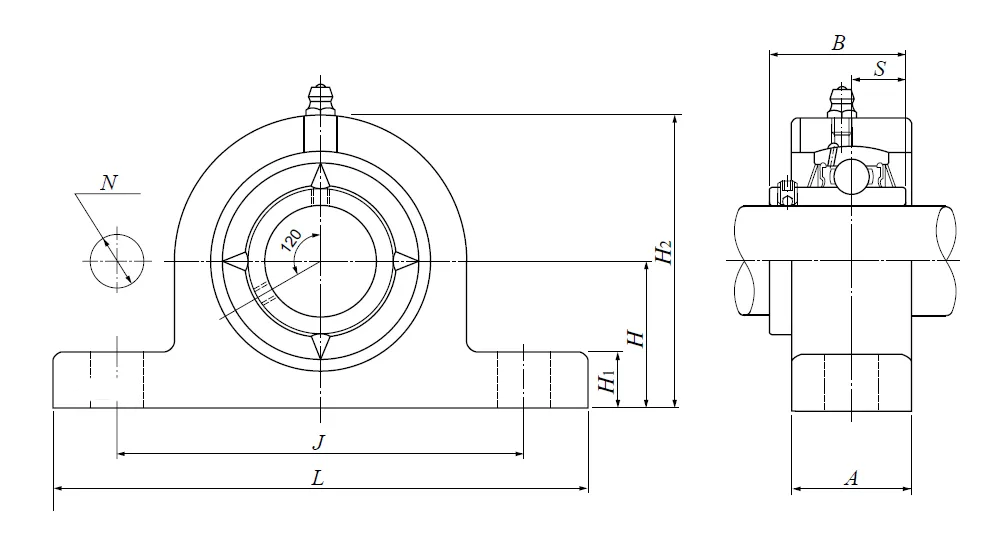

Nominal Dimensions

d	65	mm	Bore diameter
L	340	mm	Overall length
H	90	mm	Height of spherical seat centre
J	260	mm	Distance between attachment bolts
N	24	mm	Diameter of attachment bolt hole
A	65	mm	Base width
H1	33	mm	Distance between bottoms of piloting grooves
B	75	mm	Width of inner ring
S	30	mm	Distance from Opposite side face of locking device to raceway centre
H2	176	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	92.5	kN	Basic dynamic load rating
C0r	60	kN	Basic static load rating

Mass

mass

10

kg

Mass approx.
