UKPX15D1-

Designations

UKPX15D1

Included products

Bearing	UKX15D1		Bearing
Housing	PX15D1		Housing

Associated products

Adapter sleeve

H2315X

Adapter sleeve

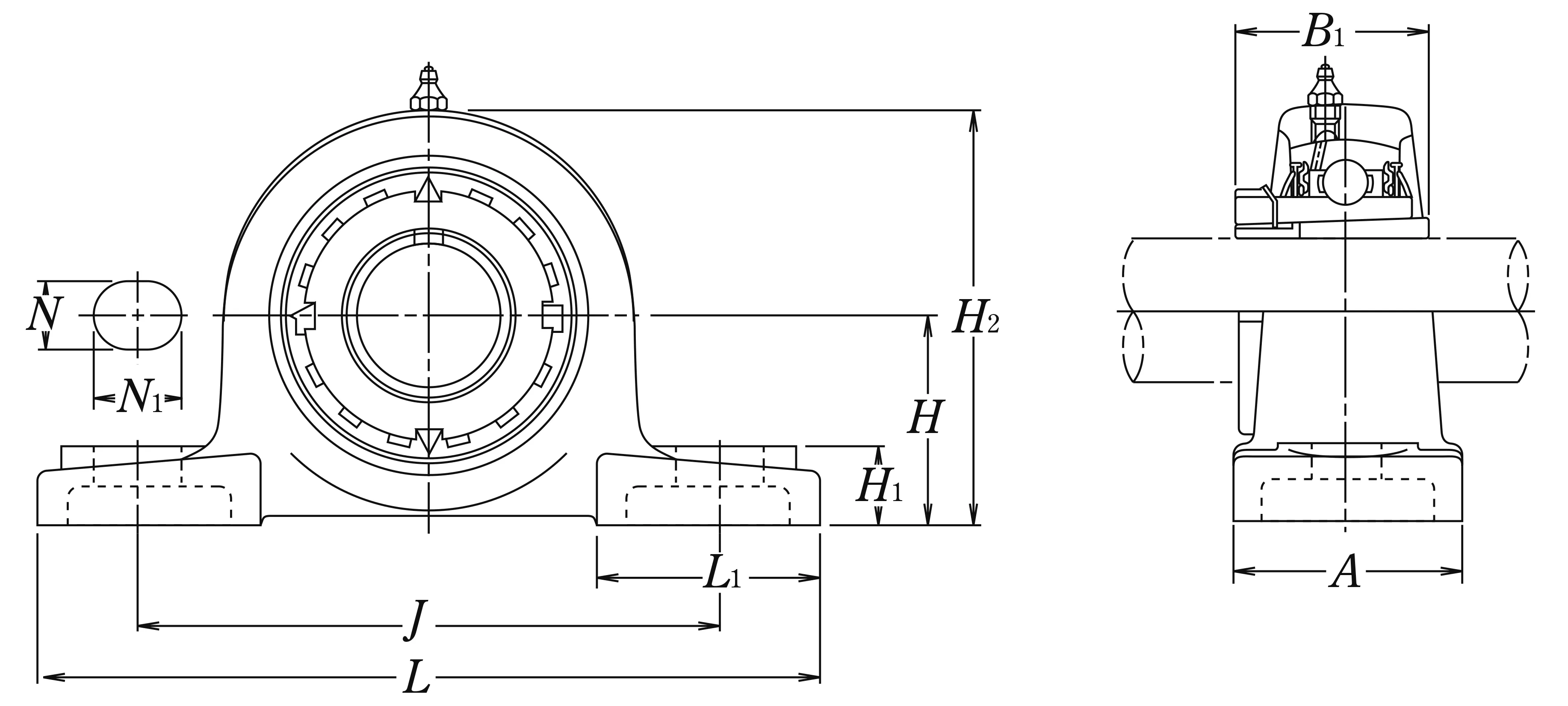

Nominal Dimensions

d	65	mm	Bore diameter
N1	30	mm	Length of attachment bolt hole
L	330	mm	Overall length
H	88.9	mm	Height of spherical seat centre
J	229	mm	Distance between attachment bolts
N	27	mm	Diameter of attachment bolt hole
A	89	mm	Base width
H1	35	mm	Distance between bottoms of piloting grooves
B1	73	mm	Width of inner ring
L1	95	mm	Foot width
H2	175	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	72.5	kN	Basic dynamic load rating
C0r	53	kN	Basic static load rating

Mass

mass

10

kg

Mass approx.
