UCPG213D1-

Designations

UCPG213D1

Included products

Bearing	UC213D1		Bearing
Housing	PG213D1		Housing

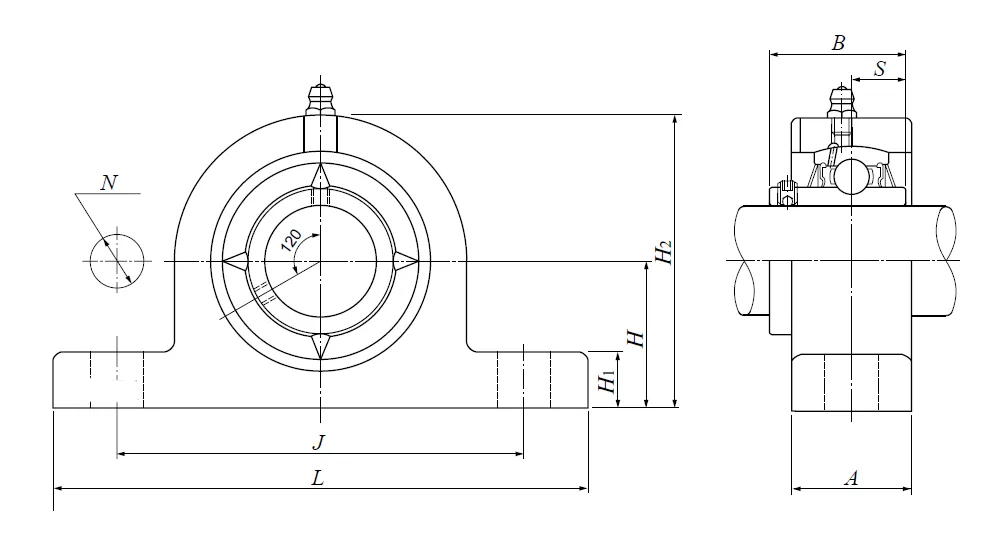

Nominal Dimensions

d	65	mm	Bore diameter
L	265	mm	Overall length
H	76.2	mm	Height of spherical seat centre
J	203	mm	Distance between attachment bolts
N	24	mm	Diameter of attachment bolt hole
A	50	mm	Base width
H1	27	mm	Distance between bottoms of piloting grooves
B	65.1	mm	Width of inner ring
S	25.4	mm	Distance from Opposite side face of locking device to raceway centre
H2	151	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

5.9

kg

Mass approx.
