UKIP213D1-

Designations

UKIP213D1

Included products

Bearing	UK213D1		Bearing
Housing	IP213D1		Housing

Associated products

Adapter sleeve

H2313X

Adapter sleeve

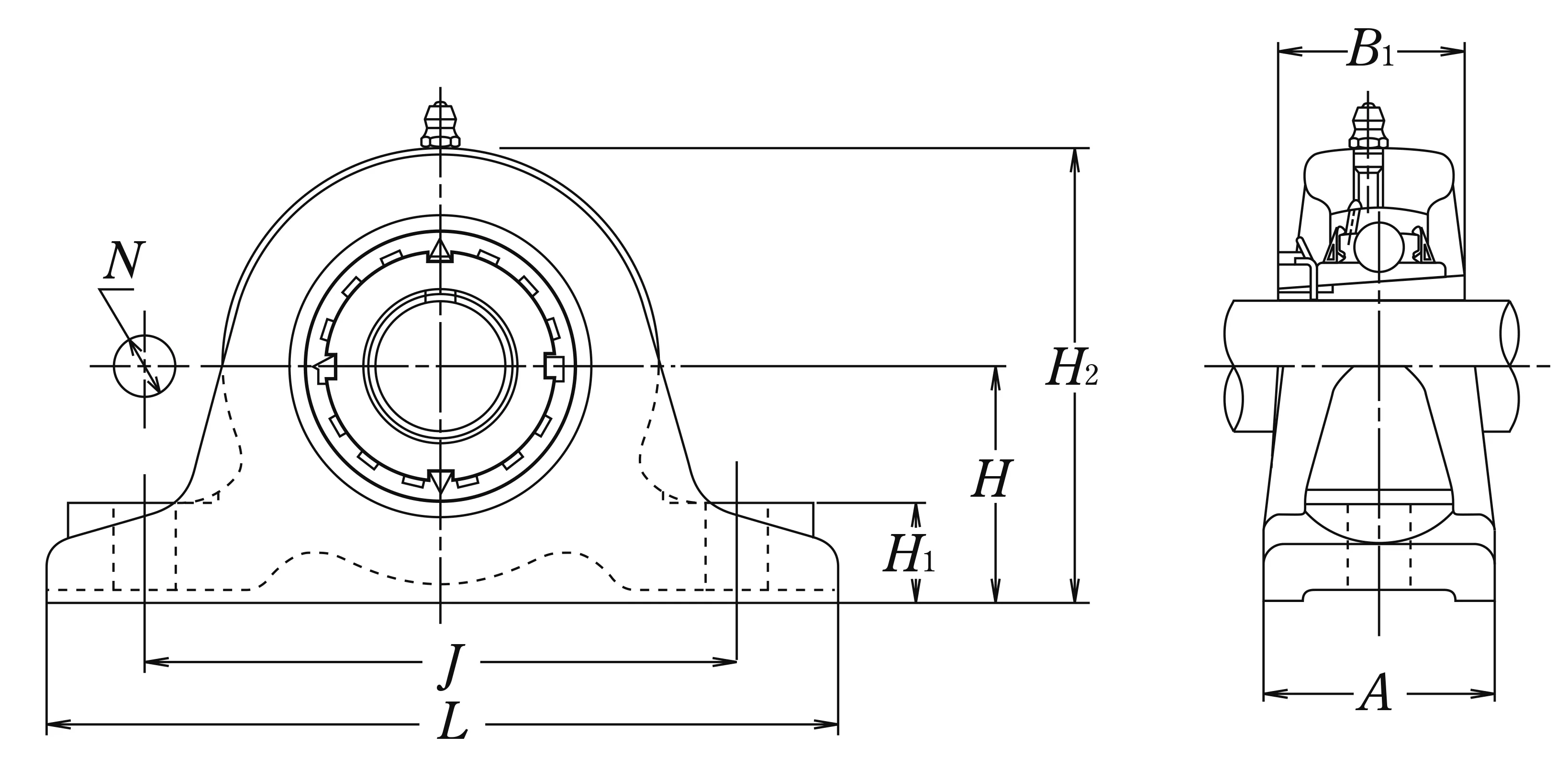

Nominal Dimensions

d	60	mm	Bore diameter
L	280	mm	Overall length
H	90	mm	Height of spherical seat centre
J	220	mm	Distance between attachment bolts
N	22	mm	Diameter of attachment bolt hole
A	70	mm	Base width
H1	30	mm	Distance between bottoms of piloting grooves
B1	65	mm	Width of inner ring
H2	172	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

8.7

kg

Mass approx.
