UCP312D1-

Designations

UCP312D1

Included products

Bearing	UC312D1		Bearing
Housing	P312D1		Housing

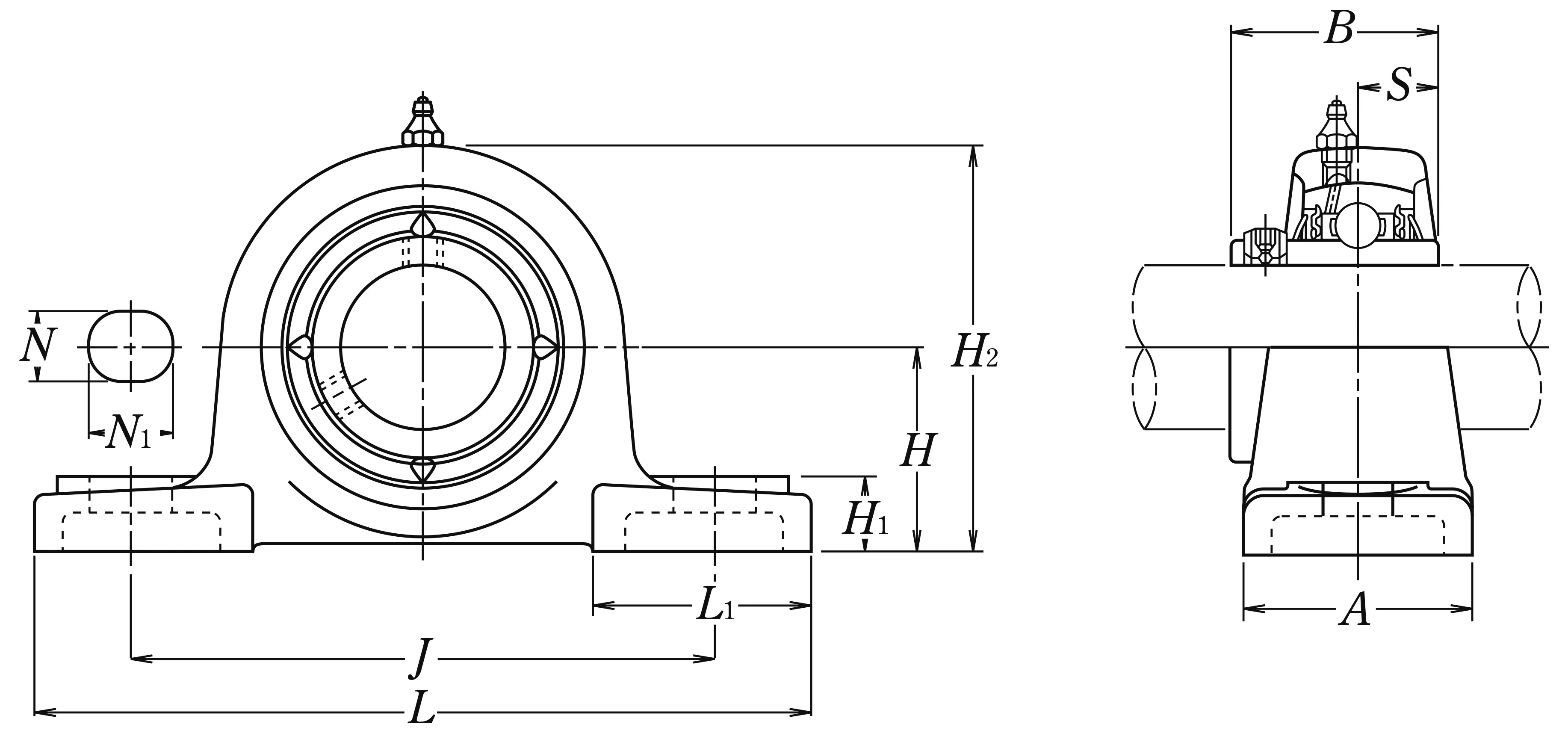

Nominal Dimensions

d	60	mm	Bore diameter
N1	38	mm	Length of attachment bolt hole
L	330	mm	Overall length
H	85	mm	Height of spherical seat centre
J	250	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A	85	mm	Base width
H1	32	mm	Distance between bottoms of piloting grooves
B	71	mm	Width of inner ring
S	26	mm	Distance from Opposite side face of locking device to raceway centre
L1	95	mm	Foot width
H2	165	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

mass

9.4

kg

Mass approx.
