C-UKP213D1-

Designations

C-UKP213D1

Included products

Bearing	UK213D1		Bearing
Housing	P213D1		Housing

Associated products

Adapter sleeve

H2313X

Adapter sleeve

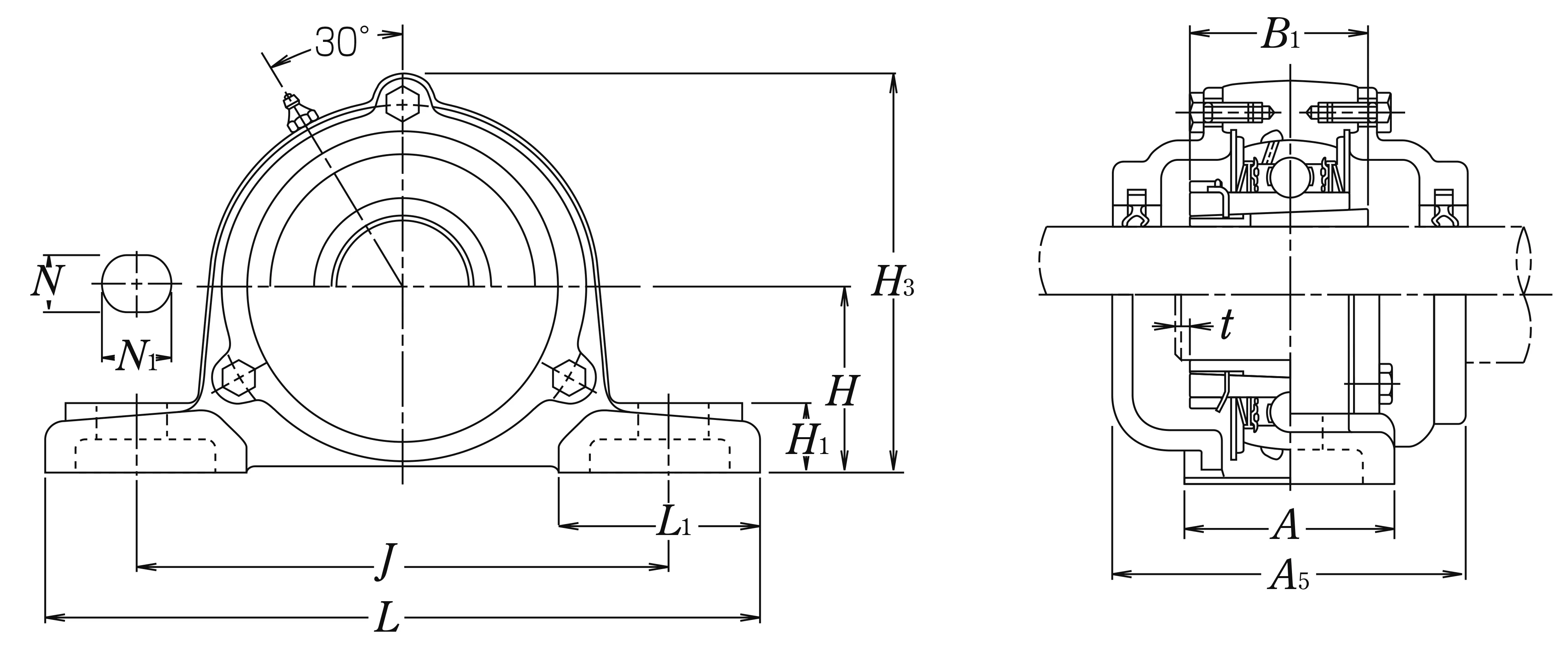

Nominal Dimensions

d	60	mm	Bore diameter
N1	28	mm	Length of attachment bolt hole
L	265	mm	Overall length
H	76.2	mm	Height of spherical seat centre
H3	155	mm	Overall height
J	203	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A	70	mm	Base width
A5	120	mm	Width including end cover
t	4	mm	Clearance
H1	27	mm	Distance between bottoms of piloting grooves
B1	65	mm	Width of inner ring
L1	77	mm	Foot width
H2	151	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

7.6

kg

Mass approx.
