UELP212D1-

Designations

UELP212D1

Included products

Bearing	UEL212D1		Bearing
Housing	P212D1		Housing

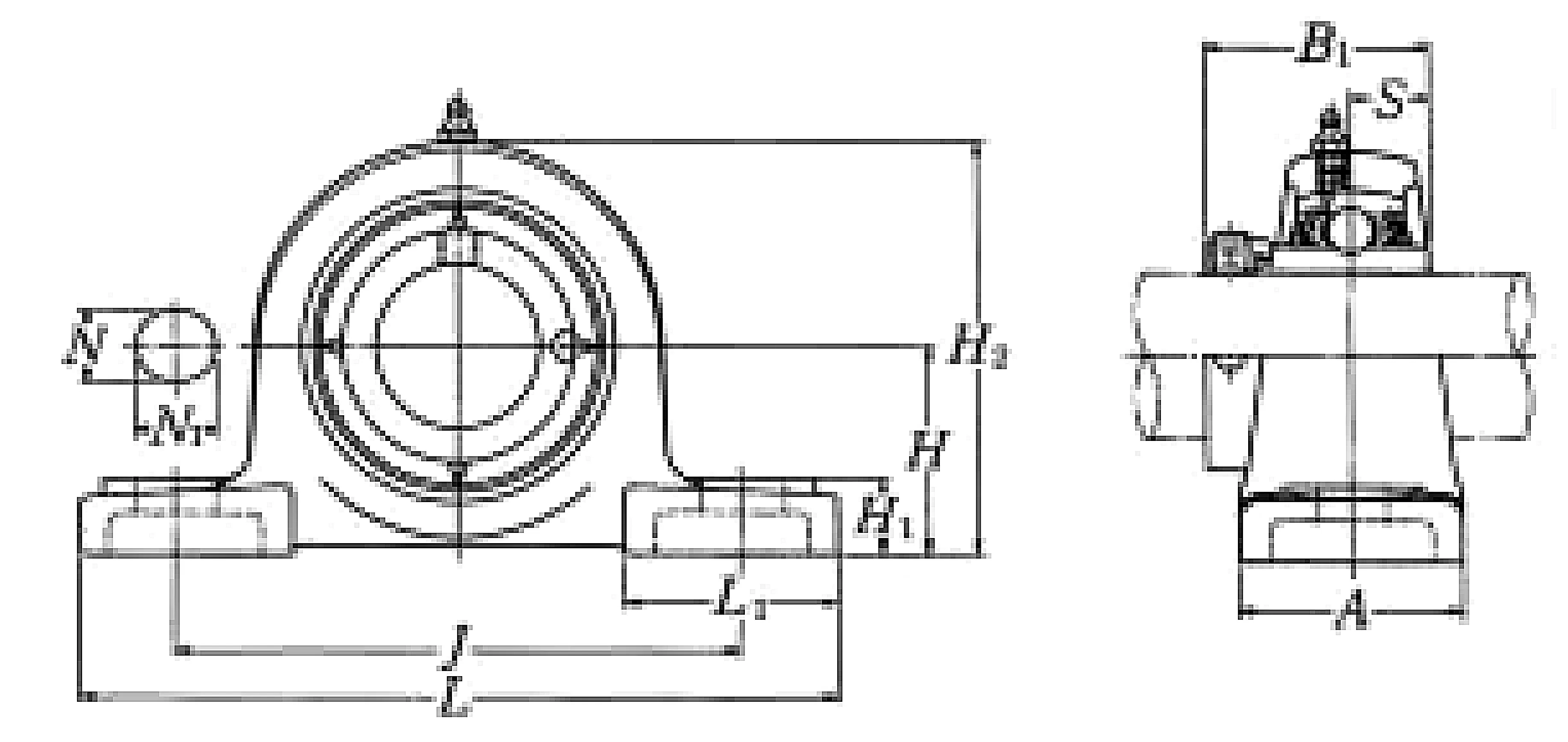

Nominal Dimensions

d	60	mm	Bore diameter
N1	23	mm	Length of attachment bolt hole
L	241	mm	Overall length
H	69.8	mm	Height of spherical seat centre
J	184	mm	Distance between attachment bolts
N	20	mm	Diameter of attachment bolt hole
A	70	mm	Base width
H1	25	mm	Distance between bottoms of piloting grooves
B1	77.8	mm	Width of inner ring
S	30.95	mm	Distance from Opposite side face of locking device to raceway centre
L1	70	mm	Foot width
H2	138	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

mass

5

kg

Mass approx.
