UKPE212D1-

Designations

UKPE212D1

Included products

Bearing	UK212D1		Bearing
Housing	PE212D1		Housing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

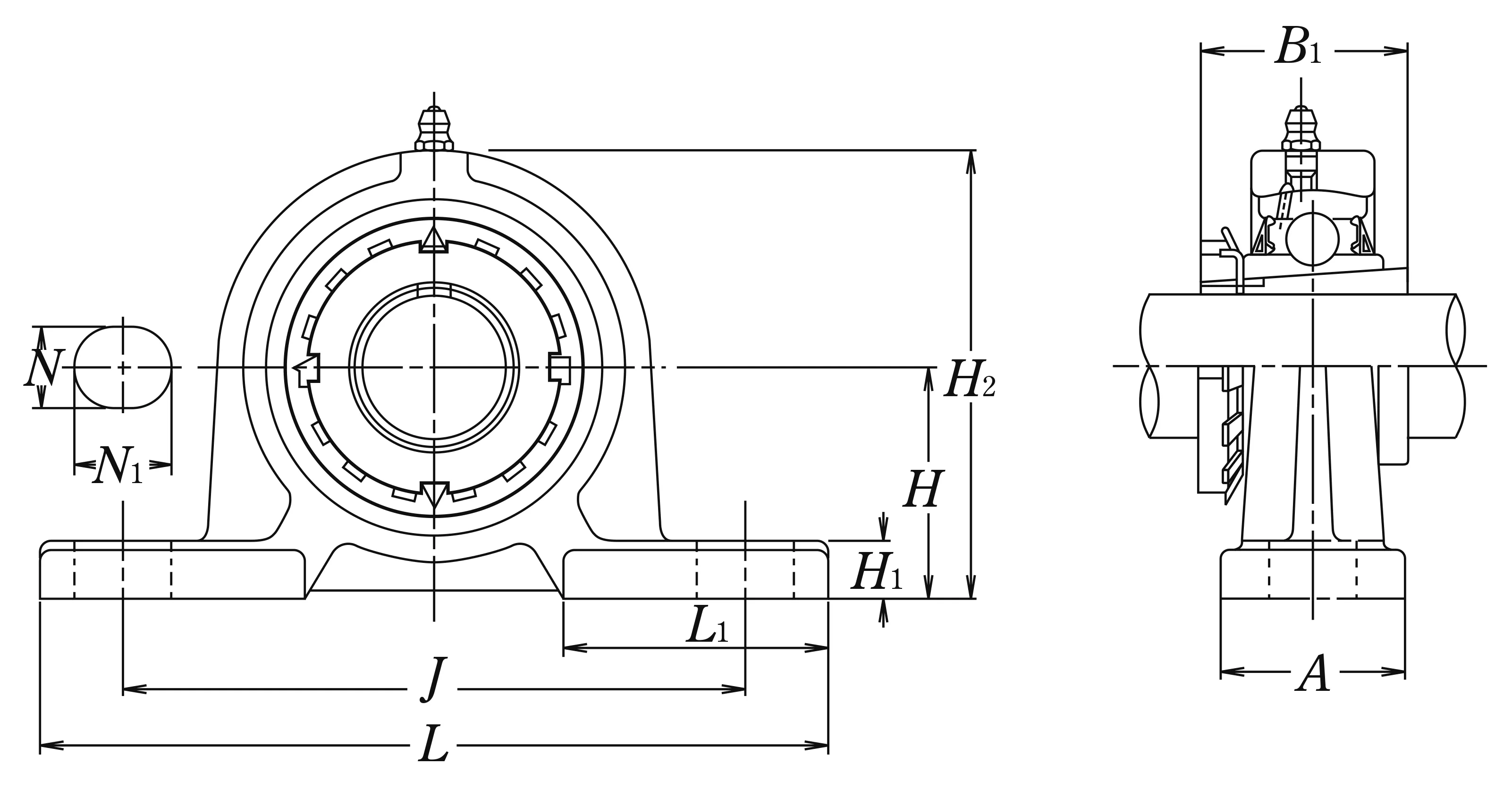

Nominal Dimensions

d	55	mm	Bore diameter
N1	22	mm	Length of attachment bolt hole
L	220	mm	Overall length
H	69.8	mm	Height of spherical seat centre
J	184	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	55	mm	Base width
H1	17	mm	Distance between bottoms of piloting grooves
B1	62	mm	Width of inner ring
L1	70	mm	Foot width
H2	137	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

mass

3.8

kg

Mass approx.
