UCPG211D1-

Designations

UCPG211D1

Included products

Bearing	UC211D1		Bearing
Housing	PG211D1		Housing

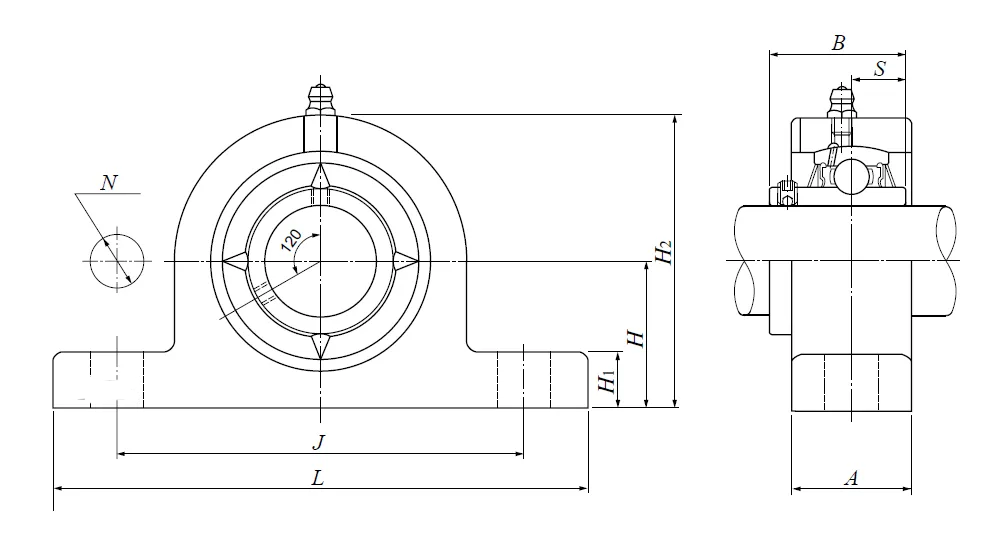

Nominal Dimensions

d	55	mm	Bore diameter
L	219	mm	Overall length
H	63.5	mm	Height of spherical seat centre
J	171	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	45	mm	Base width
H1	23	mm	Distance between bottoms of piloting grooves
B	55.6	mm	Width of inner ring
S	22.2	mm	Distance from Opposite side face of locking device to raceway centre
H2	126	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

3.3

kg

Mass approx.
