UKIP211D1-

Designations

UKIP211D1

Included products

Bearing	UK211D1		Bearing
Housing	IP211D1		Housing

Associated products

Adapter sleeve

H2311X

Adapter sleeve

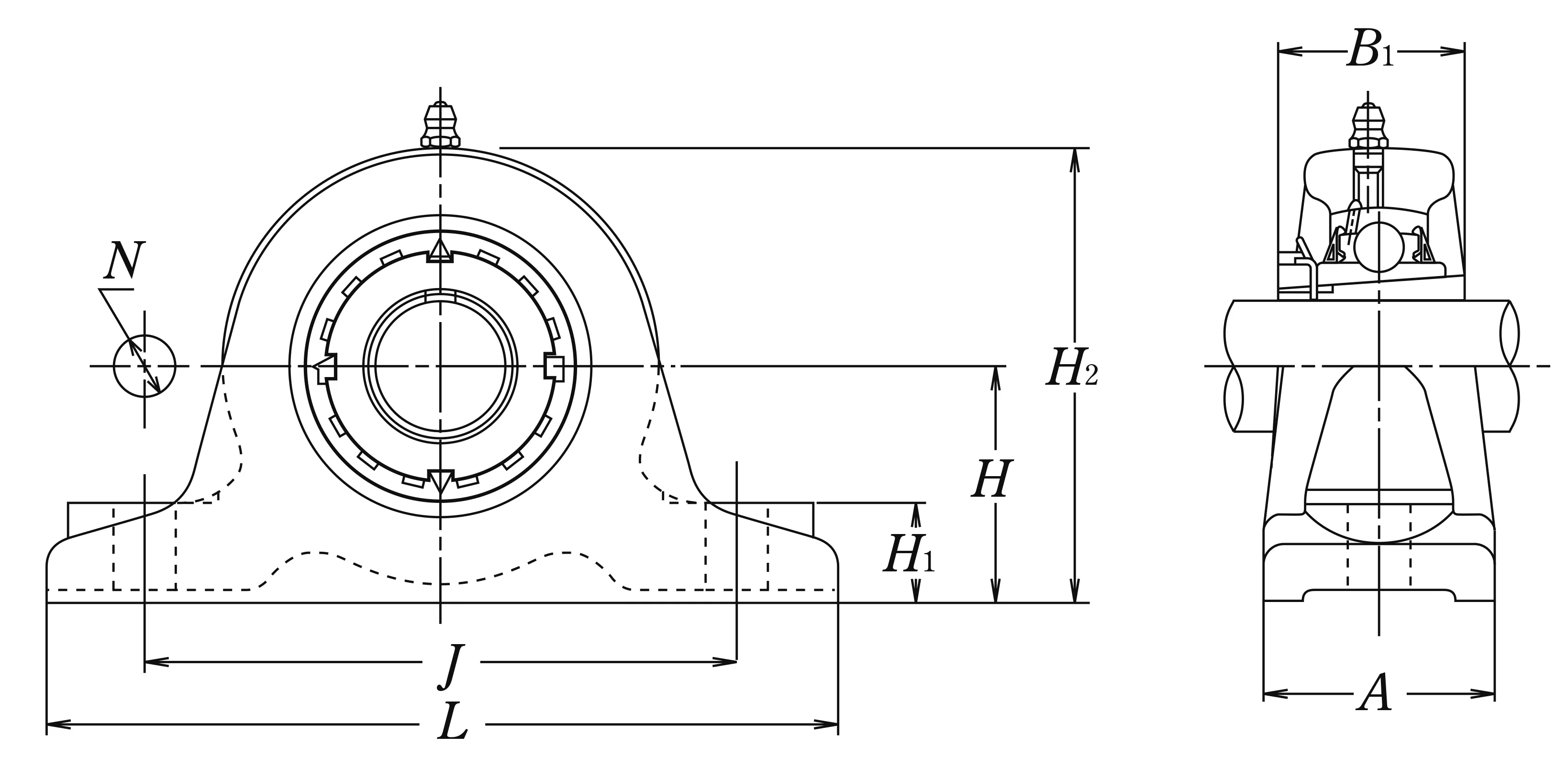

Nominal Dimensions

d	50	mm	Bore diameter
L	230	mm	Overall length
H	80	mm	Height of spherical seat centre
J	180	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	28	mm	Distance between bottoms of piloting grooves
B1	59	mm	Width of inner ring
H2	148	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

5.4

kg

Mass approx.
