UCPG310D1-

Designations

UCPG310D1

Included products

Bearing	UC310D1		Bearing
Housing	PG310D1		Housing

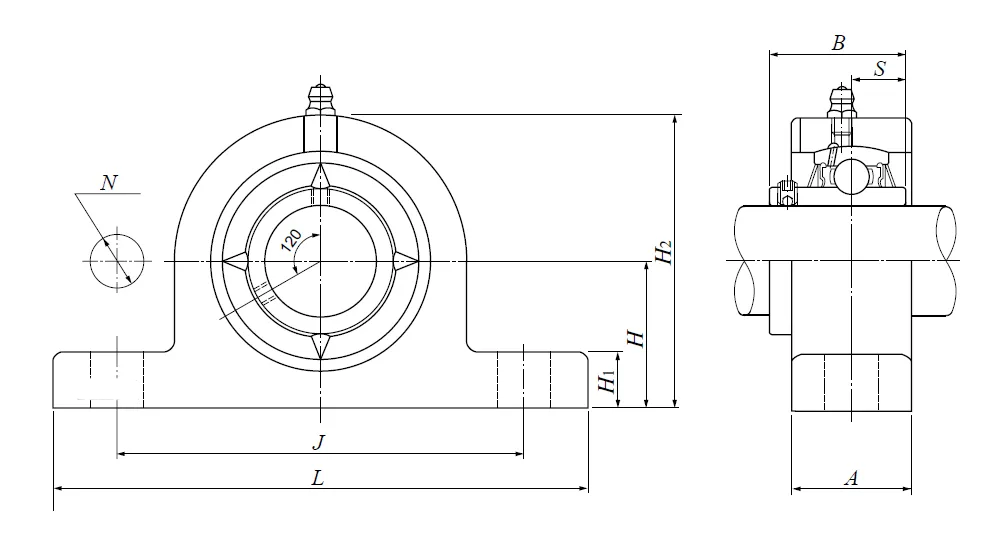

Nominal Dimensions

d	50	mm	Bore diameter
L	275	mm	Overall length
H	75	mm	Height of spherical seat centre
J	212	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	55	mm	Base width
H1	27	mm	Distance between bottoms of piloting grooves
B	61	mm	Width of inner ring
S	22	mm	Distance from Opposite side face of locking device to raceway centre
H2	143	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

mass

5.8

kg

Mass approx.
