CM-UKP211D1-

Designations

CM-UKP211D1

Included products

Bearing	UK211D1		Bearing
Housing	P211D1		Housing

Associated products

Adapter sleeve

H2311X

Adapter sleeve

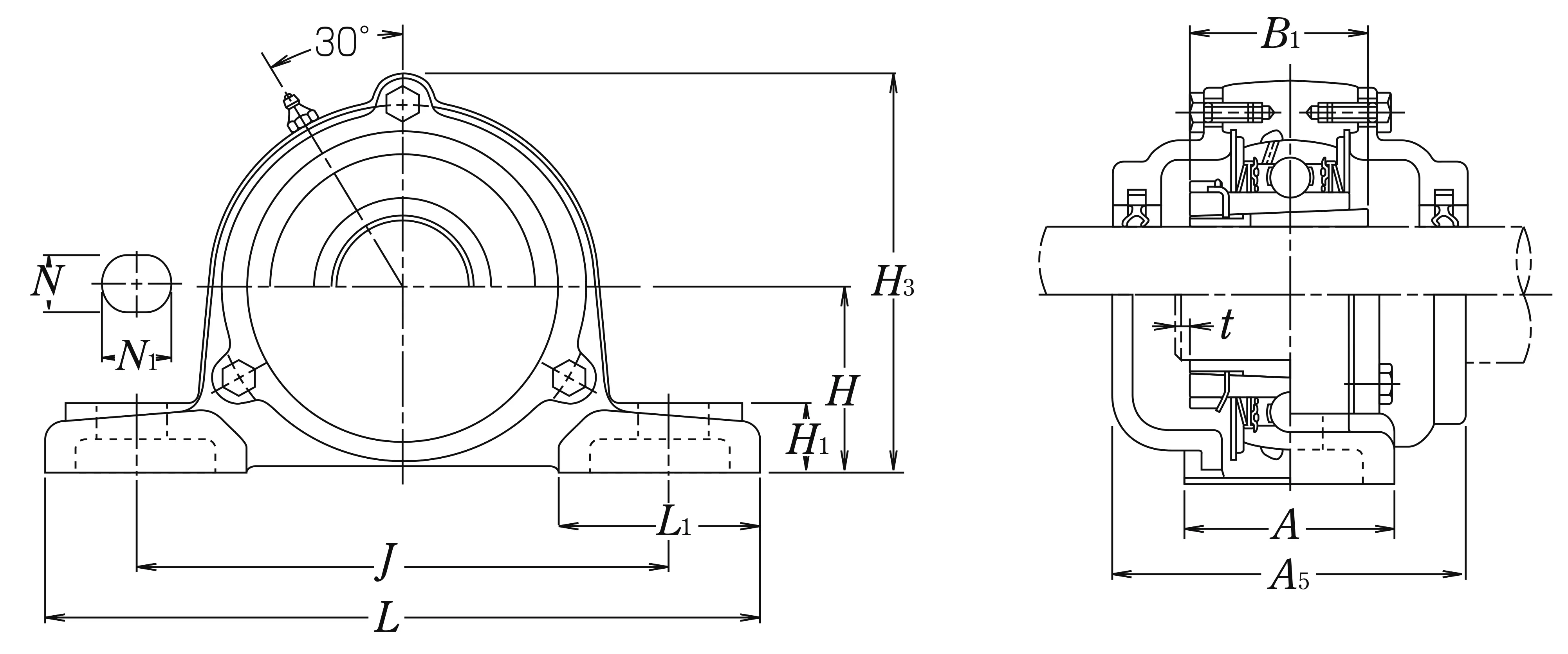

Nominal Dimensions

d	50	mm	Bore diameter
N1	23	mm	Length of attachment bolt hole
L	219	mm	Overall length
H	63.5	mm	Height of spherical seat centre
H3	130	mm	Overall height
J	171	mm	Distance between attachment bolts
N	20	mm	Diameter of attachment bolt hole
A	60	mm	Base width
A5	100	mm	Width including end cover
t	4	mm	Clearance
H1	23	mm	Distance between bottoms of piloting grooves
B1	59	mm	Width of inner ring
L1	65	mm	Foot width
H2	126	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

4.8

kg

Mass approx.
