UKPE211D1-

Designations

UKPE211D1

Included products

Bearing	UK211D1		Bearing
Housing	PE211D1		Housing

Associated products

Adapter sleeve

H2311X

Adapter sleeve

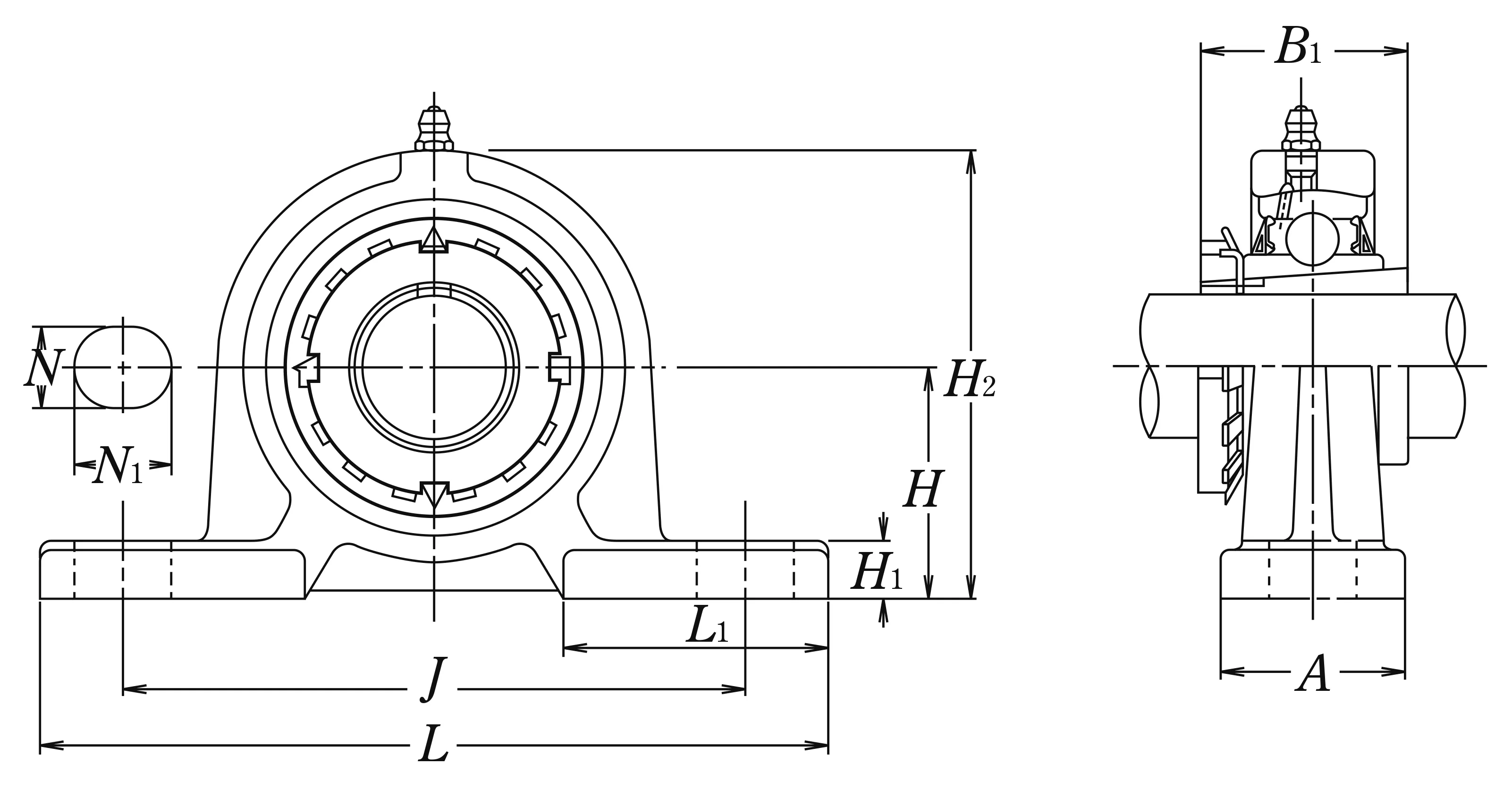

Nominal Dimensions

d	50	mm	Bore diameter
N1	22	mm	Length of attachment bolt hole
L	207	mm	Overall length
H	63.5	mm	Height of spherical seat centre
J	171	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	45	mm	Base width
H1	15	mm	Distance between bottoms of piloting grooves
B1	59	mm	Width of inner ring
L1	65	mm	Foot width
H2	125	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

2.9

kg

Mass approx.
