UCPG210D1-

Designations

UCPG210D1

Included products

Bearing	UC210D1		Bearing
Housing	PG210D1		Housing

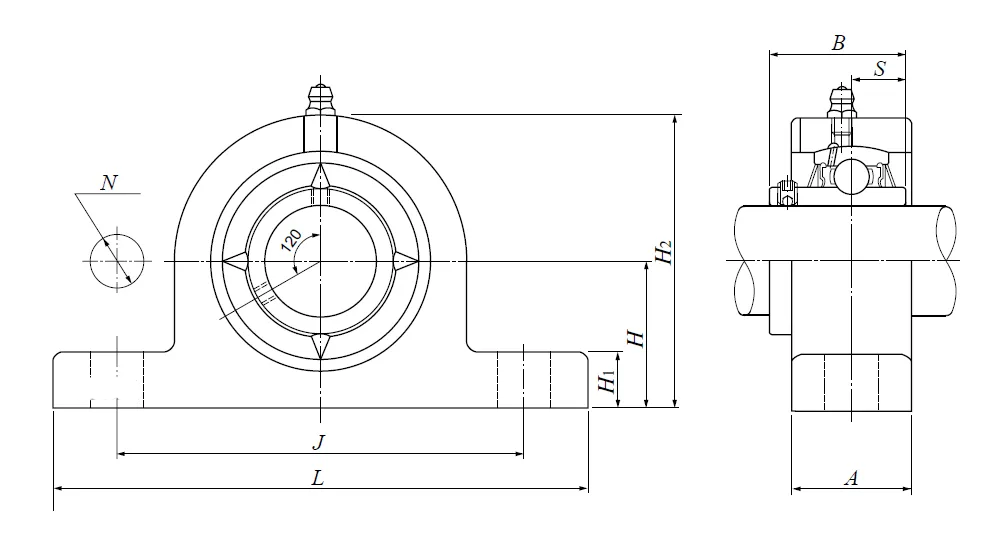

Nominal Dimensions

d	50	mm	Bore diameter
L	206	mm	Overall length
H	57.2	mm	Height of spherical seat centre
J	159	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	45	mm	Base width
H1	21	mm	Distance between bottoms of piloting grooves
B	51.6	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre
H2	114	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

2.6

kg

Mass approx.
