UKIP210D1-

Designations

UKIP210D1

Included products

Bearing	UK210D1		Bearing
Housing	IP210D1		Housing

Associated products

Adapter sleeve

H2310X

Adapter sleeve

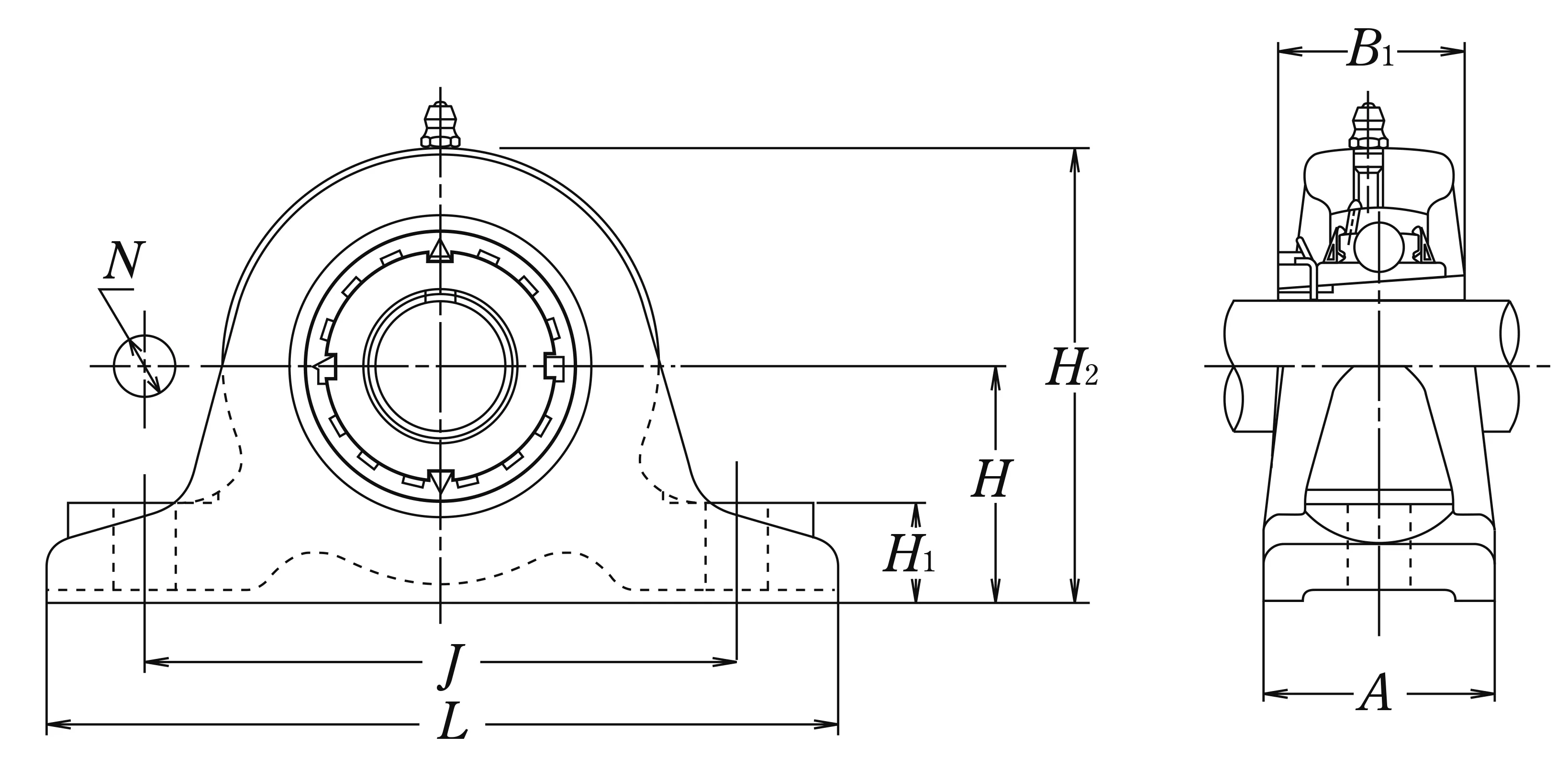

Nominal Dimensions

d	45	mm	Bore diameter
L	220	mm	Overall length
H	70	mm	Height of spherical seat centre
J	170	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	28	mm	Distance between bottoms of piloting grooves
B1	55	mm	Width of inner ring
H2	132	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

4.5

kg

Mass approx.
