ZM-UKP210D1-

Designations

ZM-UKP210D1

Included products

Bearing	UK210D1		Bearing
Housing	P210D1		Housing

Associated products

Adapter sleeve

H2310X

Adapter sleeve

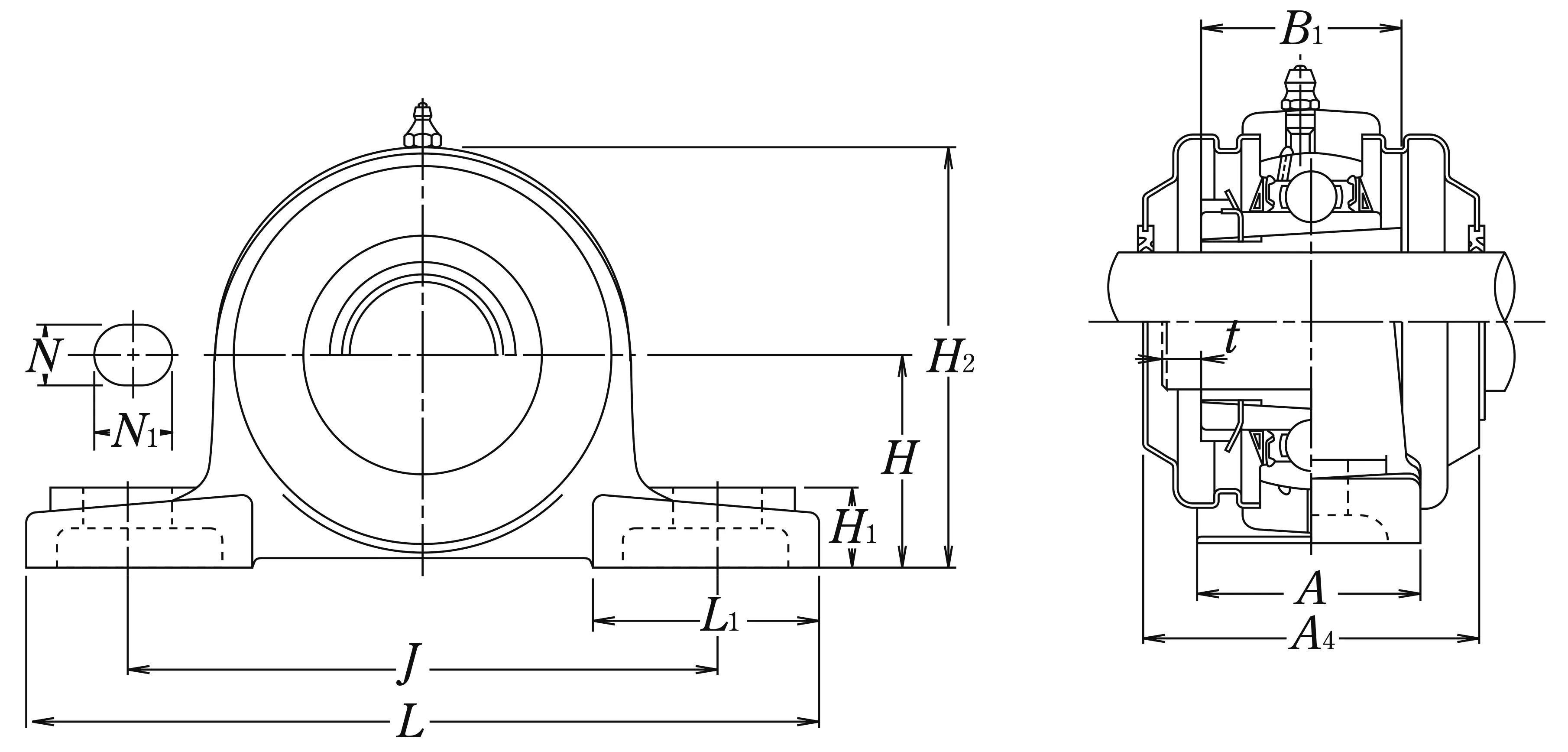

Nominal Dimensions

d	45	mm	Bore diameter
N1	23	mm	Length of attachment bolt hole
L	206	mm	Overall length
H	57.2	mm	Height of spherical seat centre
J	159	mm	Distance between attachment bolts
N	20	mm	Diameter of attachment bolt hole
A	60	mm	Base width
A4	76	mm	Width including end cover
t	3	mm	Clearance
H1	21	mm	Distance between bottoms of piloting grooves
B1	55	mm	Width of inner ring
L1	65	mm	Foot width
H2	114	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

3

kg

Mass approx.
