UCUP209D1-

Designations

UCUP209D1

Included products

Bearing	UC209D1		Bearing
Housing	UP209D1		Housing

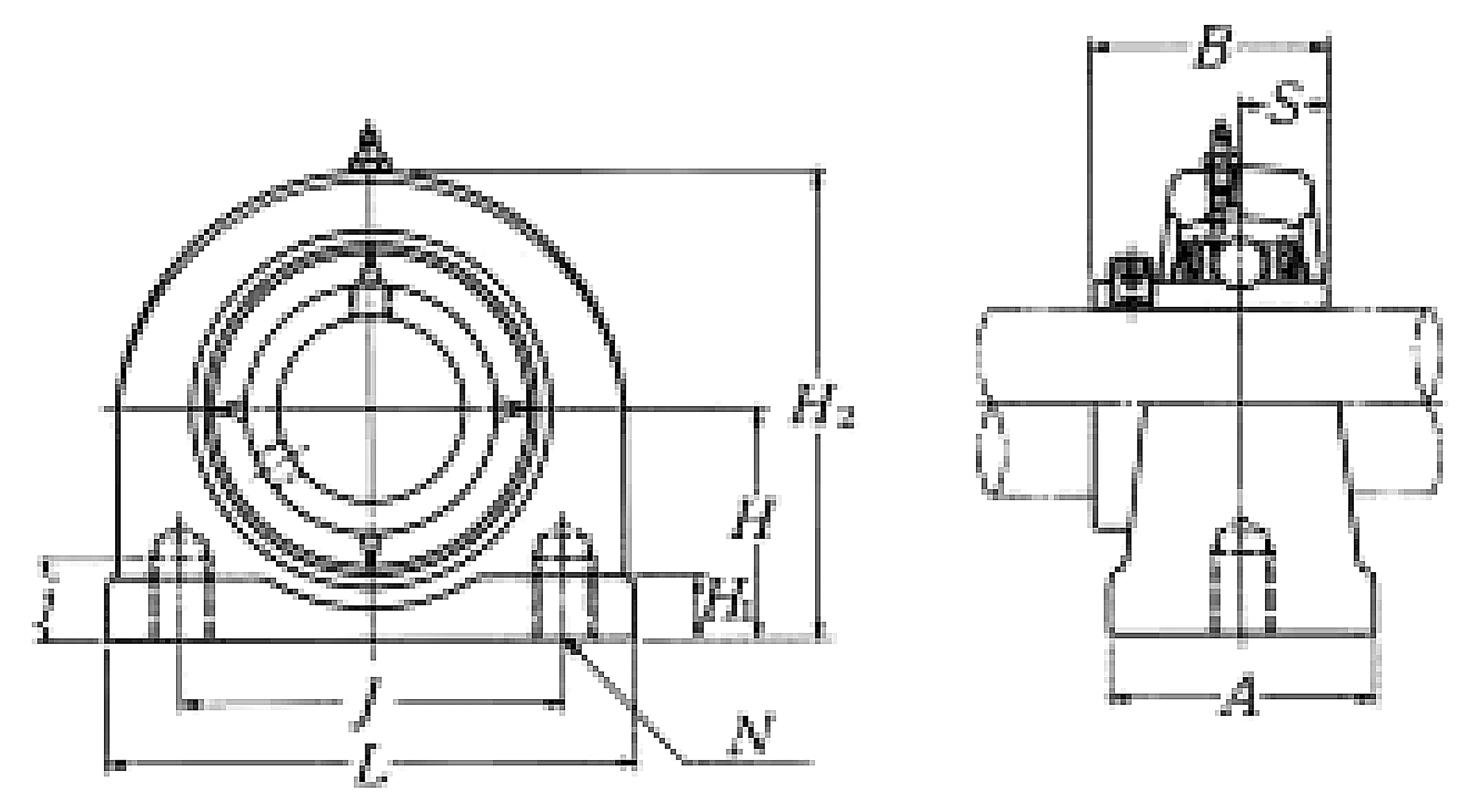

Nominal Dimensions

d	45	mm	Bore diameter
L	120	mm	Overall length
H	54.2	mm	Height of spherical seat centre
J	90	mm	Distance between attachment bolts
A	54	mm	Base width
H1	13	mm	Distance between bottoms of piloting grooves
B	49.2	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre
j	25	mm	Thread length
H2	108	mm	Overall height

Mounting information

N

M14×2

Set screw

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

mass

2.1

kg

Mass approx.
