UKIP209D1-

Designations

UKIP209D1

Included products

Bearing	UK209D1		Bearing
Housing	IP209D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

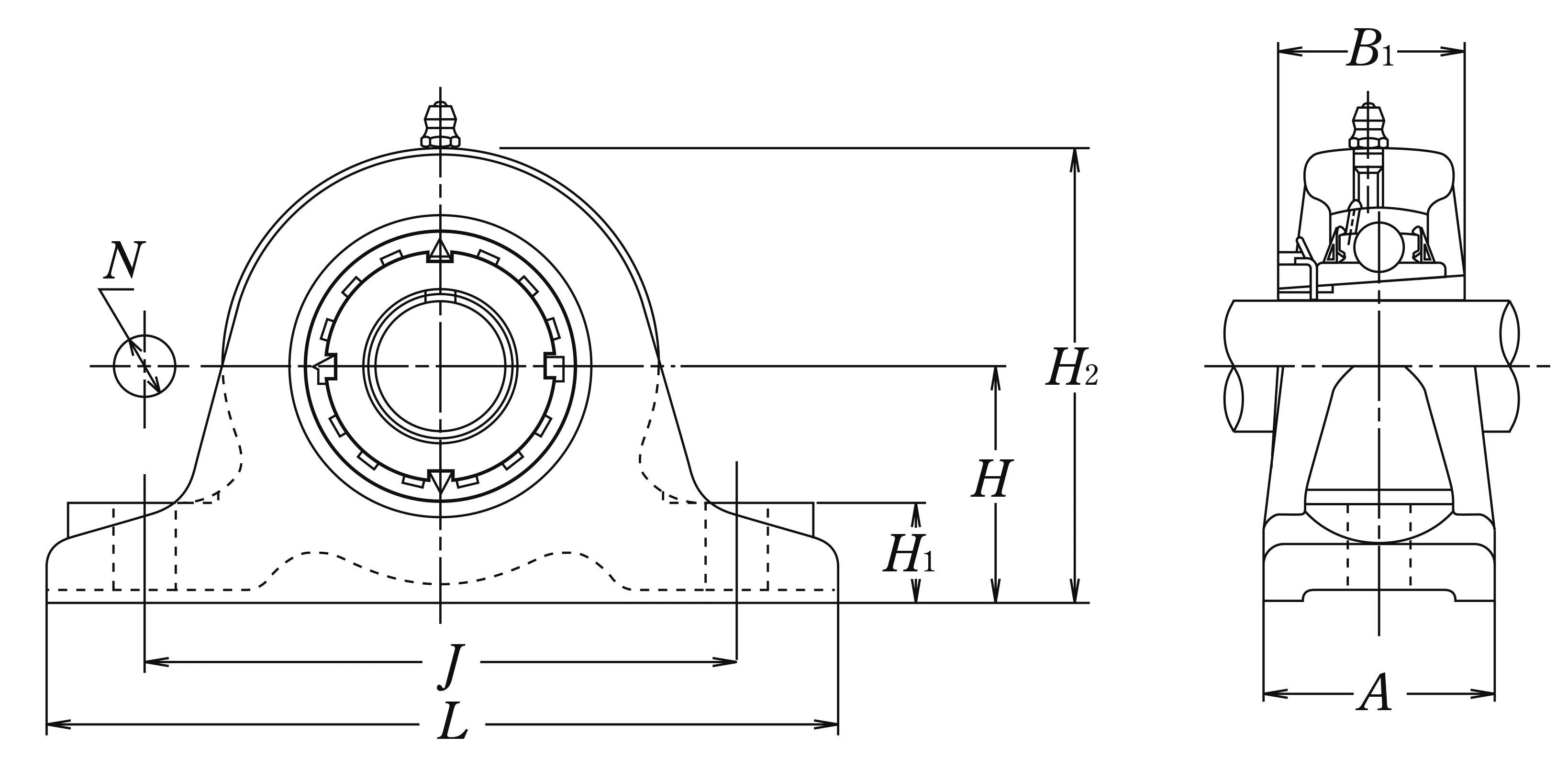

Nominal Dimensions

d	40	mm	Bore diameter
L	210	mm	Overall length
H	70	mm	Height of spherical seat centre
J	160	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	25	mm	Distance between bottoms of piloting grooves
B1	50	mm	Width of inner ring
H2	128	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

mass

3.8

kg

Mass approx.
