UKP309D1-

Designations

UKP309D1

Included products

Bearing	UK309D1		Bearing
Housing	P309D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

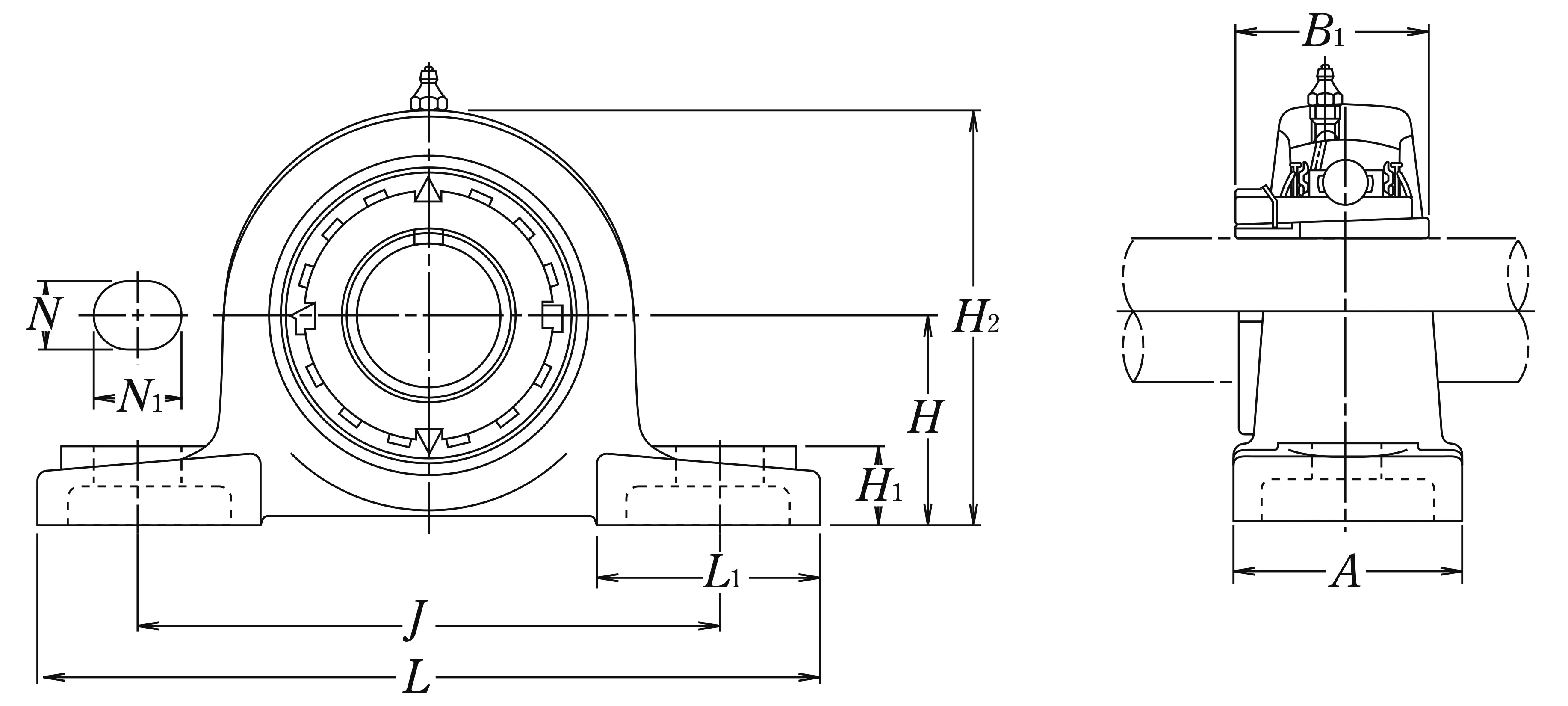

Nominal Dimensions

d	40	mm	Bore diameter
N1	30	mm	Length of attachment bolt hole
L	245	mm	Overall length
H	67	mm	Height of spherical seat centre
J	190	mm	Distance between attachment bolts
N	20	mm	Diameter of attachment bolt hole
A	67	mm	Base width
H1	24	mm	Distance between bottoms of piloting grooves
B1	50	mm	Width of inner ring
L1	65	mm	Foot width
H2	129	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

mass

4.1

kg

Mass approx.
