UCPG308D1-

Designations

UCPG308D1

Included products

Bearing	UC308D1		Bearing
Housing	PG308D1		Housing

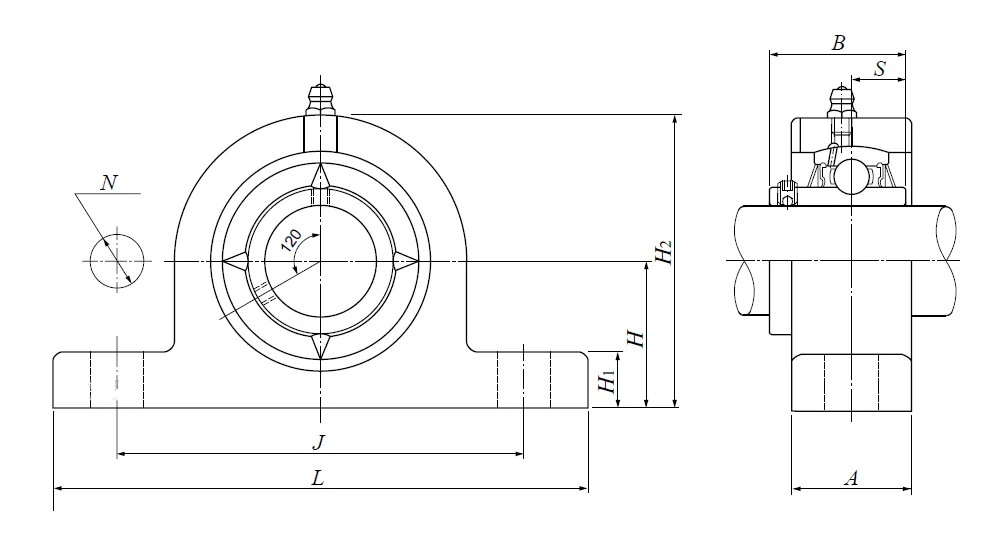

Nominal Dimensions

d	40	mm	Bore diameter
L	220	mm	Overall length
H	60	mm	Height of spherical seat centre
J	170	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	45	mm	Base width
H1	22	mm	Distance between bottoms of piloting grooves
B	52	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre
H2	116	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	40.5	kN	Basic dynamic load rating
C0r	24	kN	Basic static load rating

Mass

mass

3

kg

Mass approx.
