UKPE209D1-

Designations

UKPE209D1

Included products

Bearing	UK209D1		Bearing
Housing	PE209D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

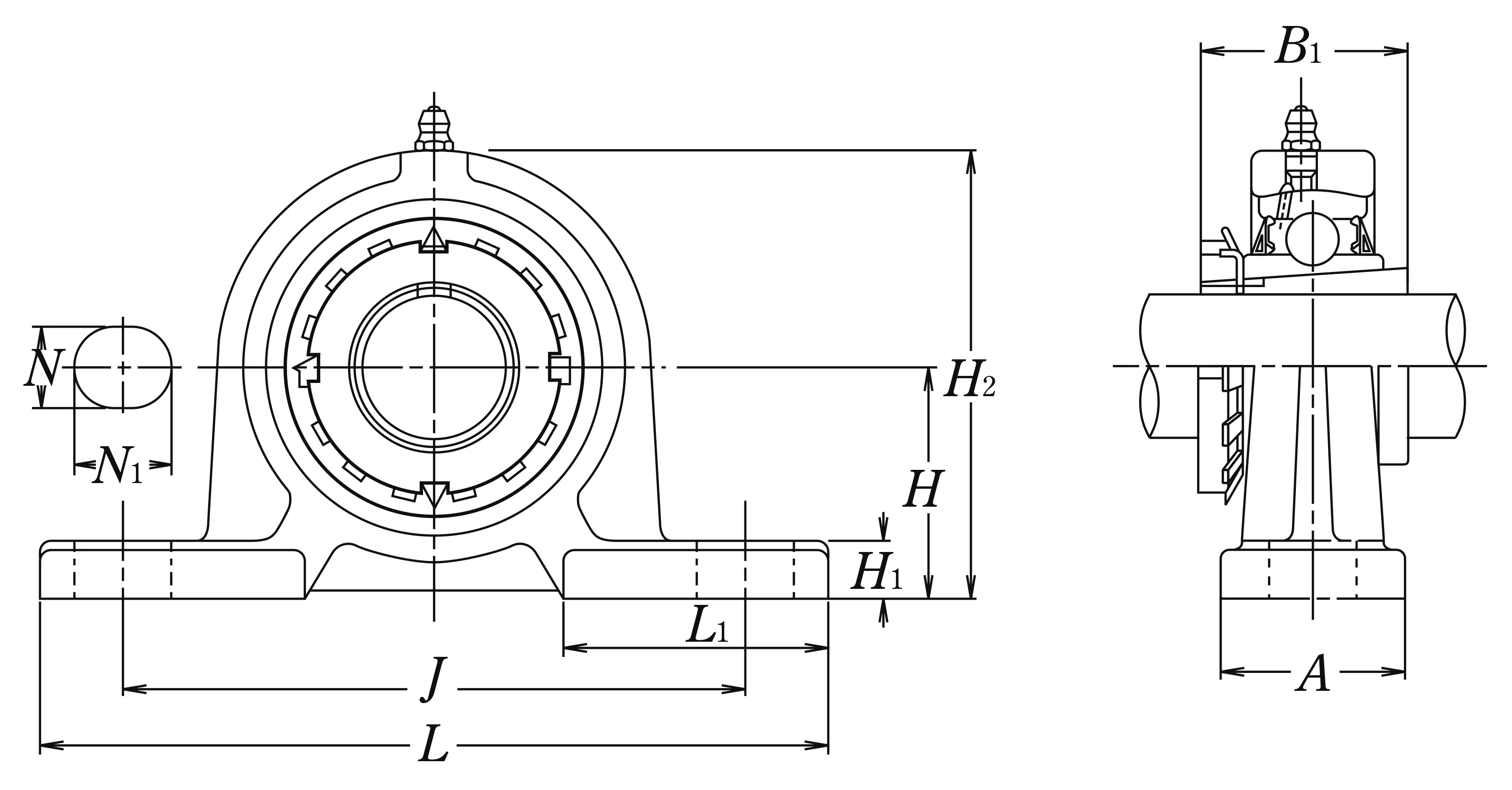

Nominal Dimensions

d	40	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	180	mm	Overall length
H	54	mm	Height of spherical seat centre
J	146	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	40	mm	Base width
H1	13	mm	Distance between bottoms of piloting grooves
B1	50	mm	Width of inner ring
L1	60	mm	Foot width
H2	105	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	32.5	kN	Basic dynamic load rating
C0r	20.4	kN	Basic static load rating

Mass

mass

1.6

kg

Mass approx.
