AELPB208-

Designations

AELPB208

Included products

Bearing	AEL208		Bearing
Housing	PB208		Housing

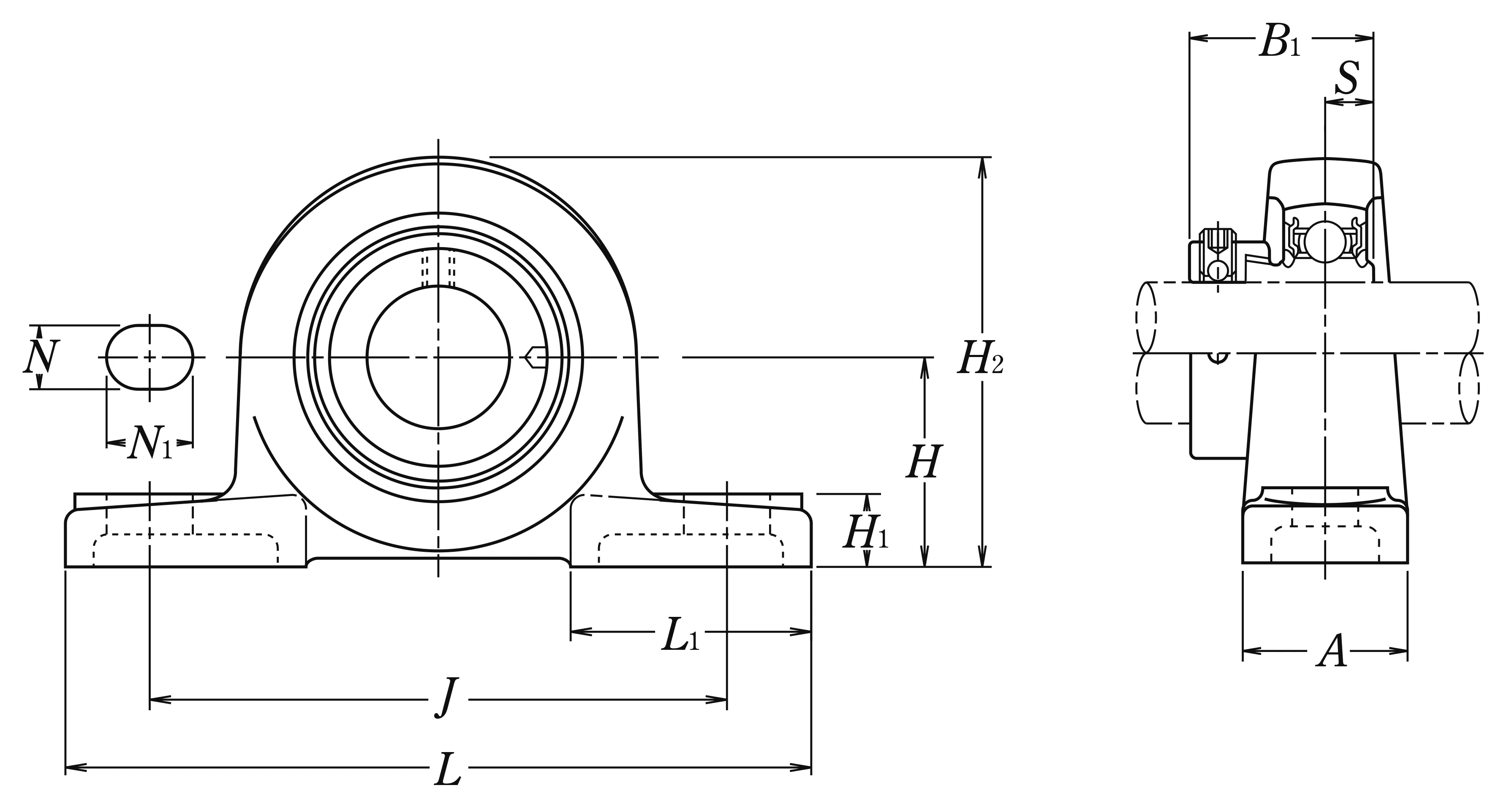

Nominal Dimensions

d	40	mm	Bore diameter
N1	22	mm	Length of attachment bolt hole
L	184	mm	Overall length
H	50.8	mm	Height of spherical seat centre
J	140	mm	Distance between attachment bolts
N	14	mm	Diameter of attachment bolt hole
A	37	mm	Base width
H1	18	mm	Distance between bottoms of piloting grooves
B1	43.7	mm	Width of inner ring
S	11	mm	Distance from Opposite side face of locking device to raceway centre
L1	52	mm	Foot width
H2	102	mm	Overall height

Mounting information

G

M12

Bolt size

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

mass

2

kg

Mass approx.
