UCUP208D1-

Designations

UCUP208D1

Included products

Bearing	UC208D1		Bearing
Housing	UP208D1		Housing

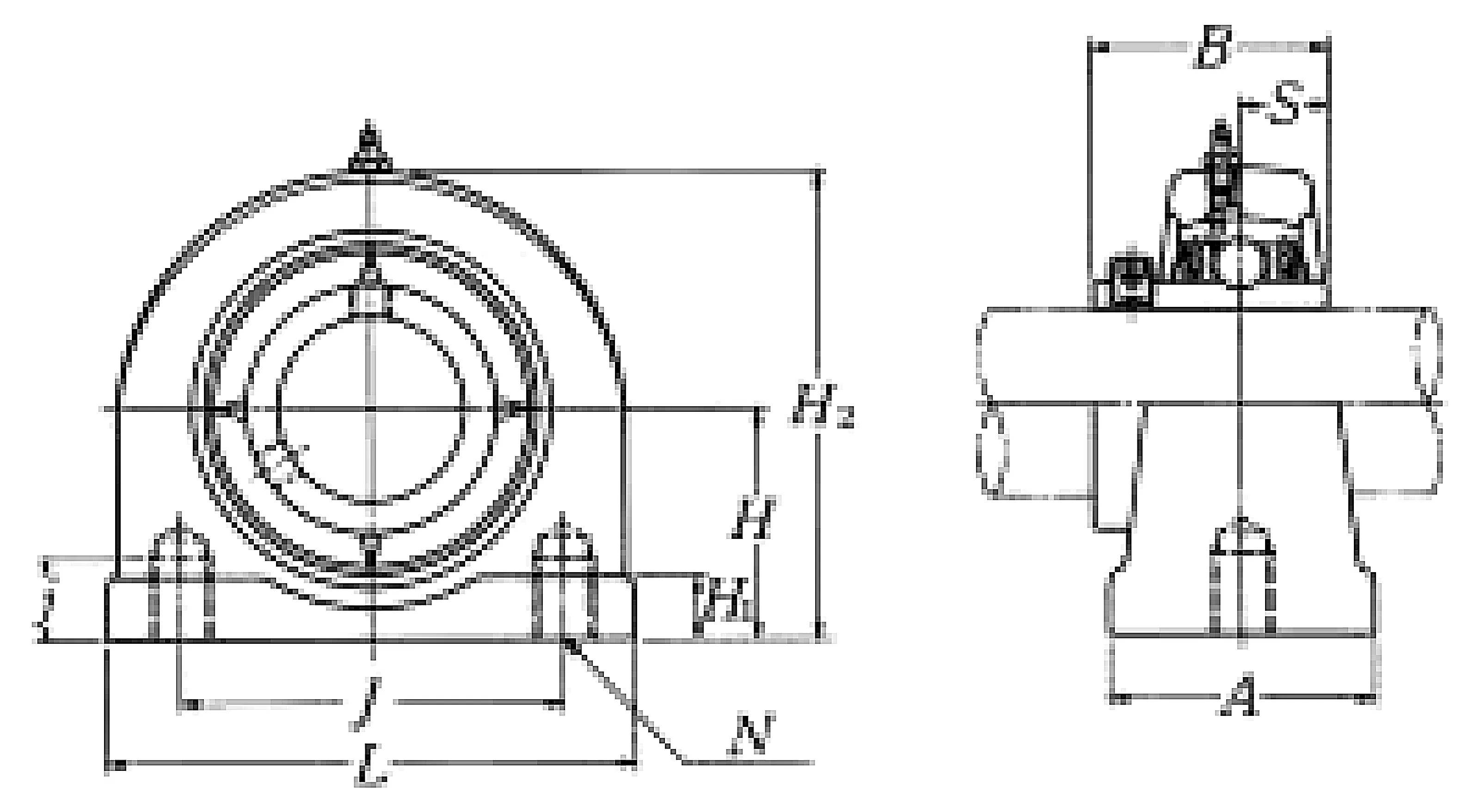

Nominal Dimensions

d	40	mm	Bore diameter
L	116	mm	Overall length
H	49.2	mm	Height of spherical seat centre
J	84	mm	Distance between attachment bolts
A	54	mm	Base width
H1	13	mm	Distance between bottoms of piloting grooves
B	49.2	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre
j	20	mm	Thread length
H2	100	mm	Overall height

Mounting information

N

M14×2

Set screw

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

mass

1.8

kg

Mass approx.
