UKIP208D1-

Designations

UKIP208D1

Included products

Bearing	UK208D1		Bearing
Housing	IP208D1		Housing

Associated products

Adapter sleeve

H2308X

Adapter sleeve

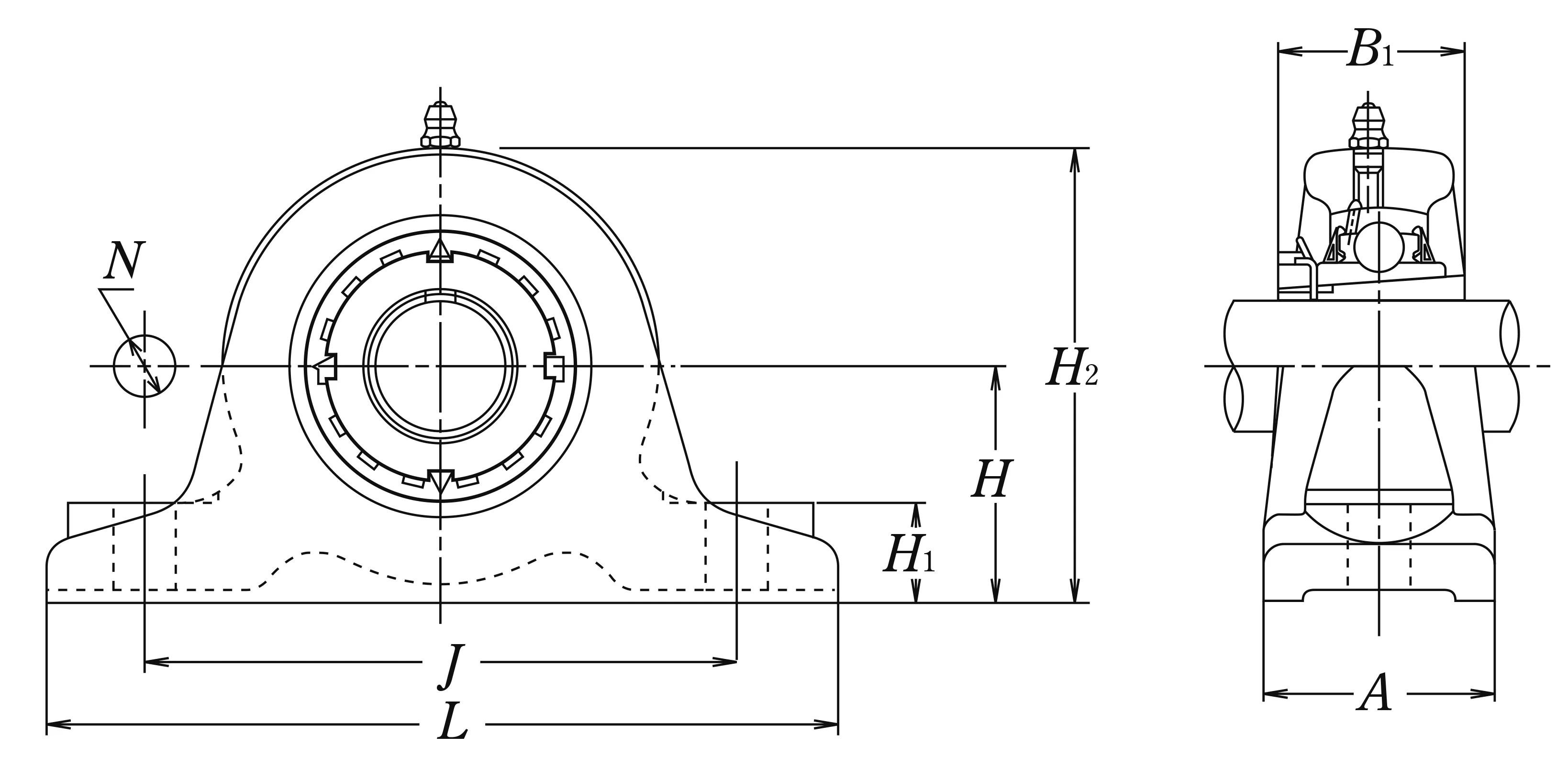

Nominal Dimensions

d	35	mm	Bore diameter
L	200	mm	Overall length
H	60	mm	Height of spherical seat centre
J	150	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	25	mm	Distance between bottoms of piloting grooves
B1	46	mm	Width of inner ring
H2	115	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

mass

3.6

kg

Mass approx.
