UCHP206D1-

Designations

UCHP206D1

Included products

Bearing	UC206D1		Bearing
Housing	HP206D1		Housing

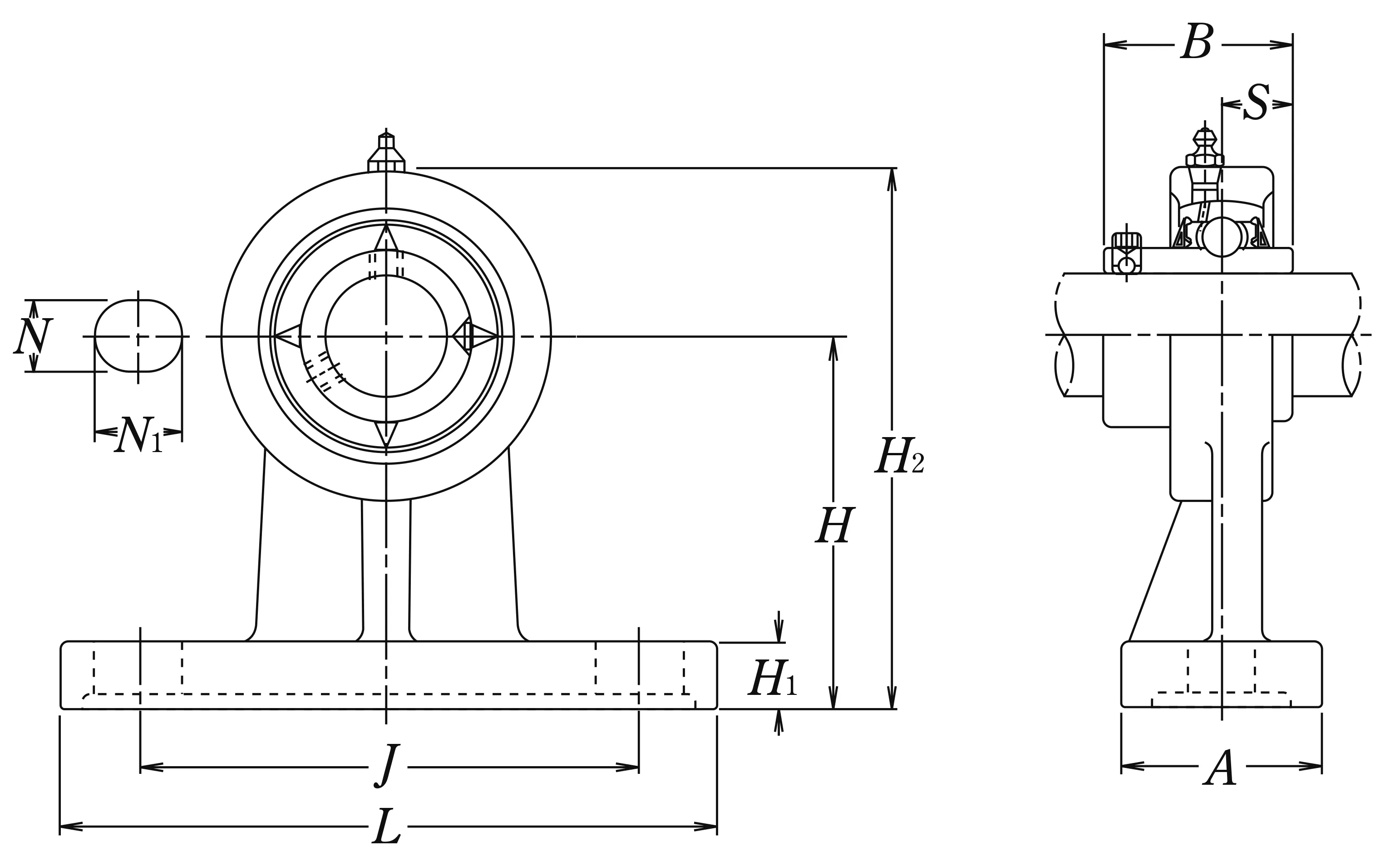

Nominal Dimensions

d	30	mm	Bore diameter
N1	21	mm	Length of attachment bolt hole
L	165	mm	Overall length
H	90	mm	Height of spherical seat centre
J	120	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	50	mm	Base width
H1	16	mm	Distance between bottoms of piloting grooves
B	38.1	mm	Width of inner ring
S	15.9	mm	Distance from Opposite side face of locking device to raceway centre
H2	130	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.8

kg

Mass approx.
