UCPG306D1-

Designations

UCPG306D1

Included products

Bearing	UC306D1		Bearing
Housing	PG306D1		Housing

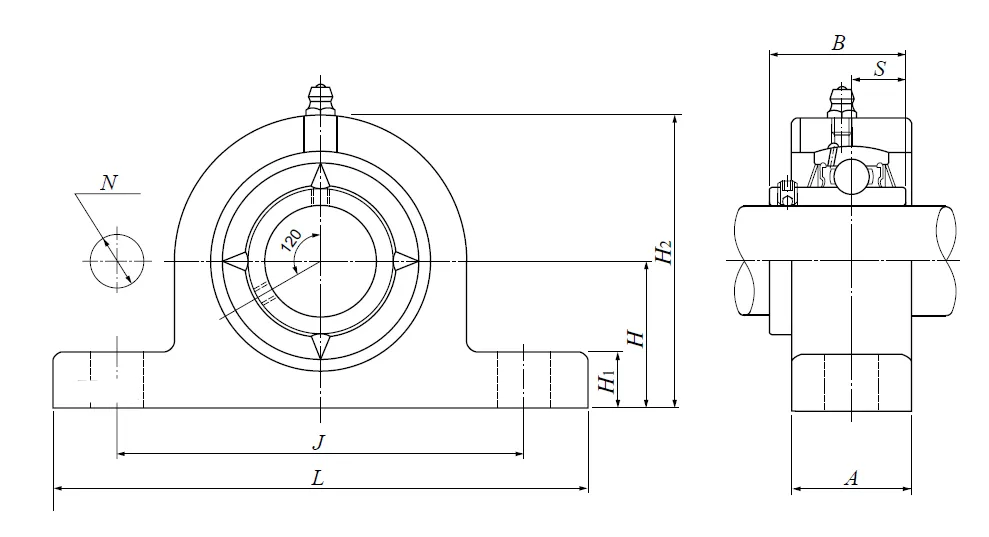

Nominal Dimensions

d	30	mm	Bore diameter
L	180	mm	Overall length
H	50	mm	Height of spherical seat centre
J	140	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	35	mm	Base width
H1	18	mm	Distance between bottoms of piloting grooves
B	43	mm	Width of inner ring
S	17	mm	Distance from Opposite side face of locking device to raceway centre
H2	95	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

mass

1.8

kg

Mass approx.
