UKPE207D1-

Designations

UKPE207D1

Included products

Bearing	UK207D1		Bearing
Housing	PE207D1		Housing

Associated products

Adapter sleeve

H2307X

Adapter sleeve

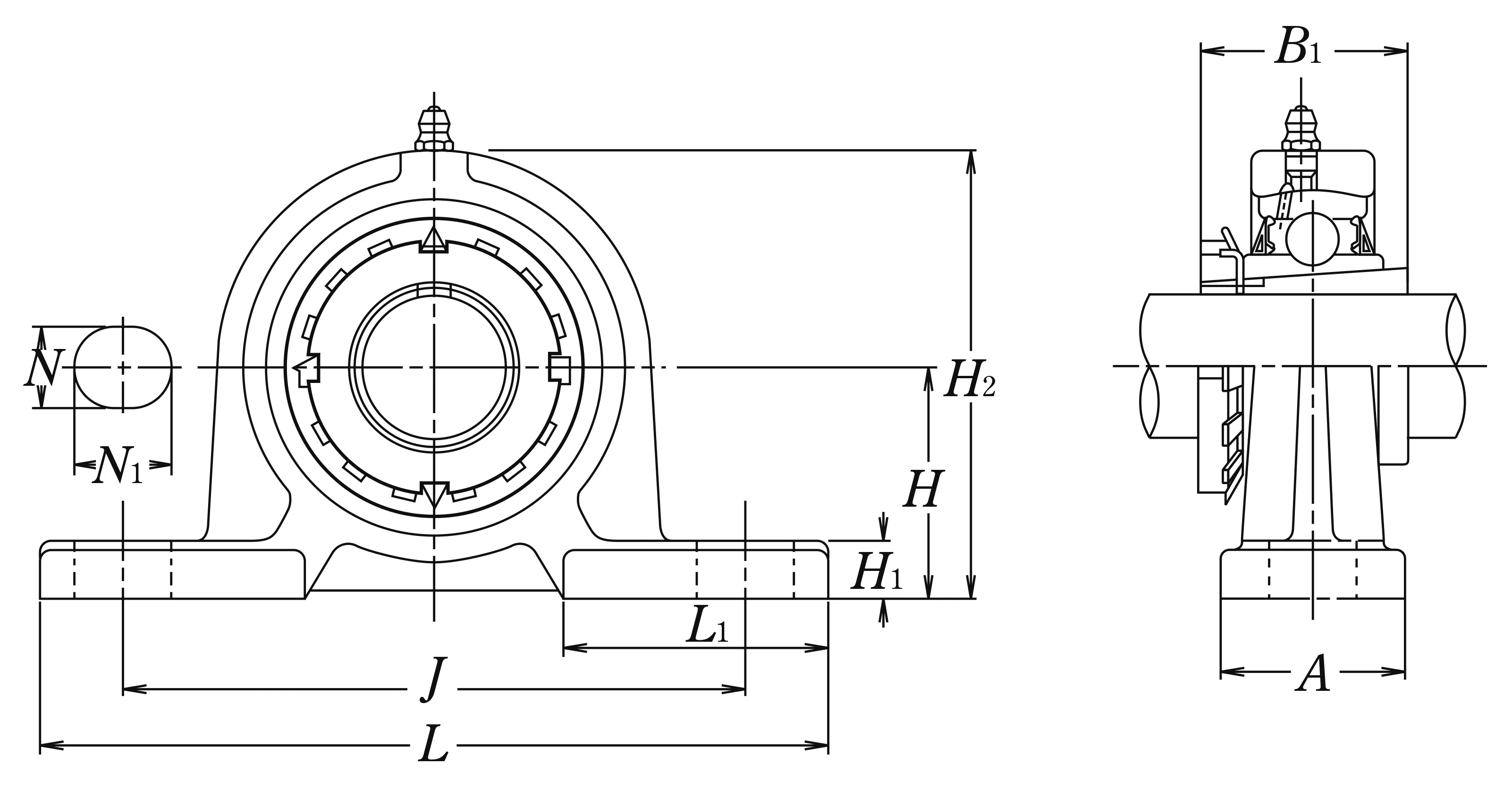

Nominal Dimensions

d	30	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	161	mm	Overall length
H	47.6	mm	Height of spherical seat centre
J	127	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	38	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B1	43	mm	Width of inner ring
L1	54	mm	Foot width
H2	92	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

1.2

kg

Mass approx.
