ASPB206-

Designations

ASPB206

Included products

Bearing	AS206		Bearing
Housing	PB206		Housing

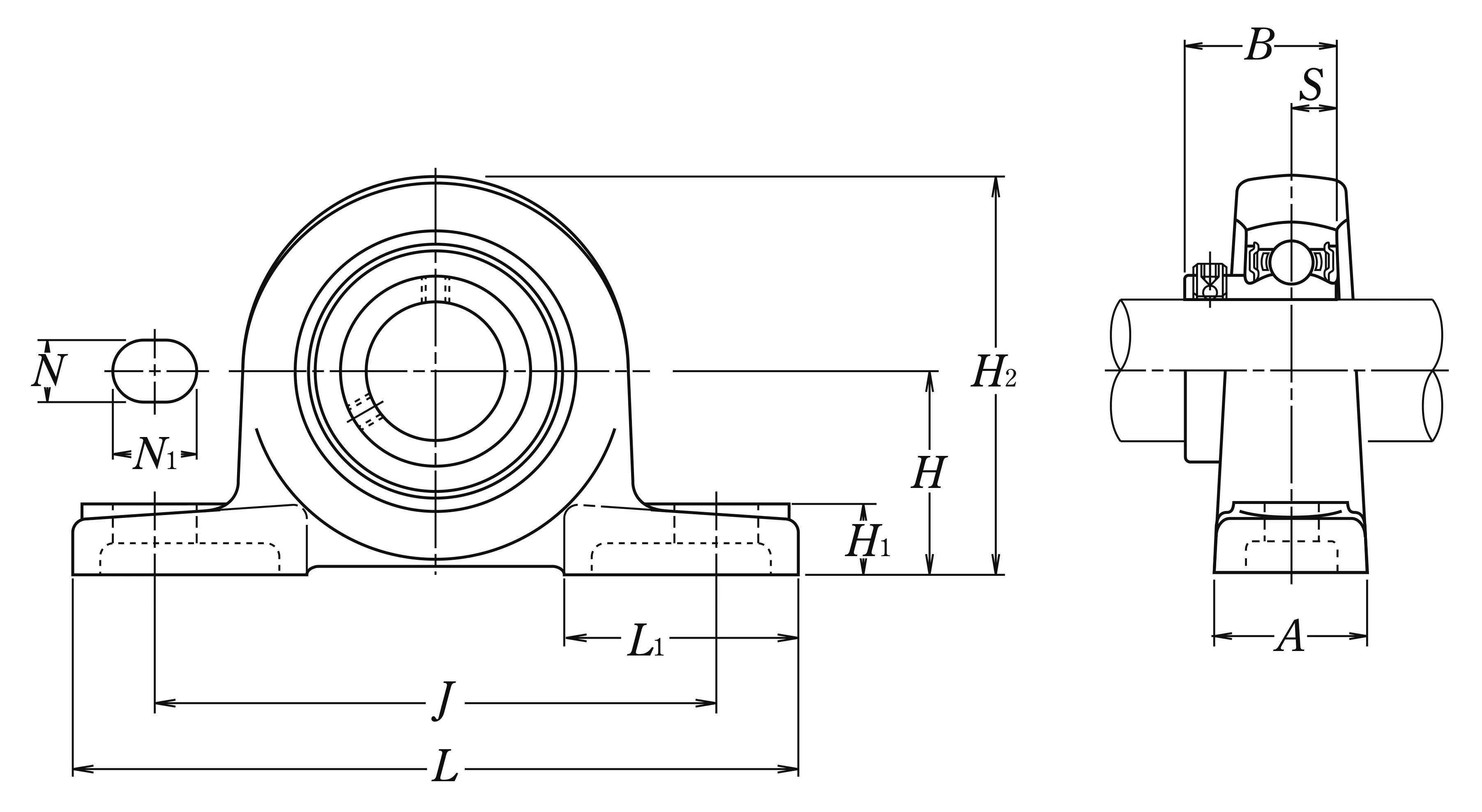

Nominal Dimensions

d	30	mm	Bore diameter
N1	21	mm	Length of attachment bolt hole
L	156	mm	Overall length
H	42.9	mm	Height of spherical seat centre
J	120	mm	Distance between attachment bolts
N	14	mm	Diameter of attachment bolt hole
A	33	mm	Base width
H1	14	mm	Distance between bottoms of piloting grooves
B	29	mm	Width of inner ring
S	8	mm	Distance from Opposite side face of locking device to raceway centre
L1	52	mm	Foot width
H2	83	mm	Overall height

Mounting information

G

M12

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1

kg

Mass approx.
