UCPG305D1-

Designations

UCPG305D1

Included products

Bearing	UC305D1		Bearing
Housing	PG305D1		Housing

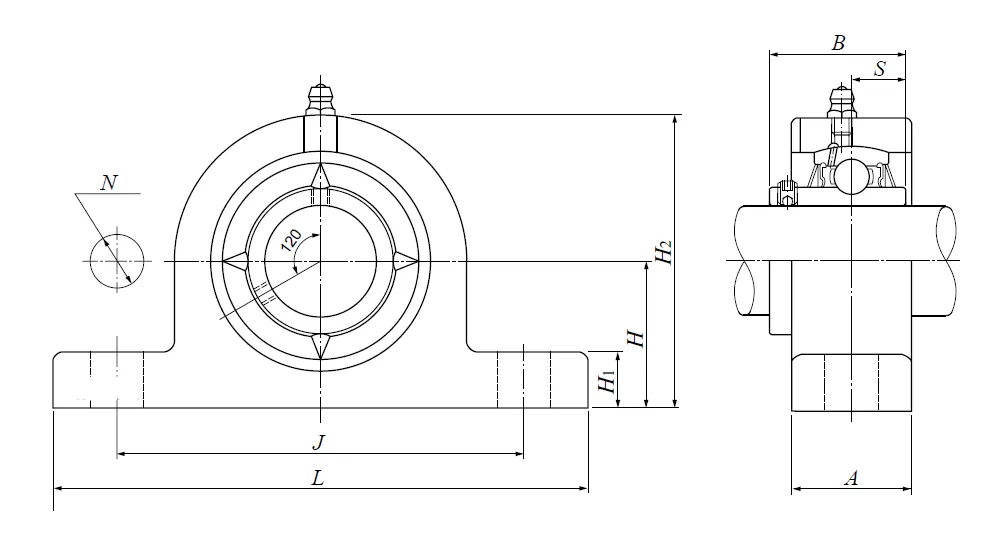

Nominal Dimensions

d	25	mm	Bore diameter
L	175	mm	Overall length
H	45	mm	Height of spherical seat centre
J	132	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	35	mm	Base width
H1	15	mm	Distance between bottoms of piloting grooves
B	38	mm	Width of inner ring
S	15	mm	Distance from Opposite side face of locking device to raceway centre
H2	85	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	21.2	kN	Basic dynamic load rating
C0r	10.9	kN	Basic static load rating

Mass

mass

1.4

kg

Mass approx.
