ASPB205-

Designations

ASPB205

Included products

Bearing	AS205		Bearing
Housing	PB205		Housing

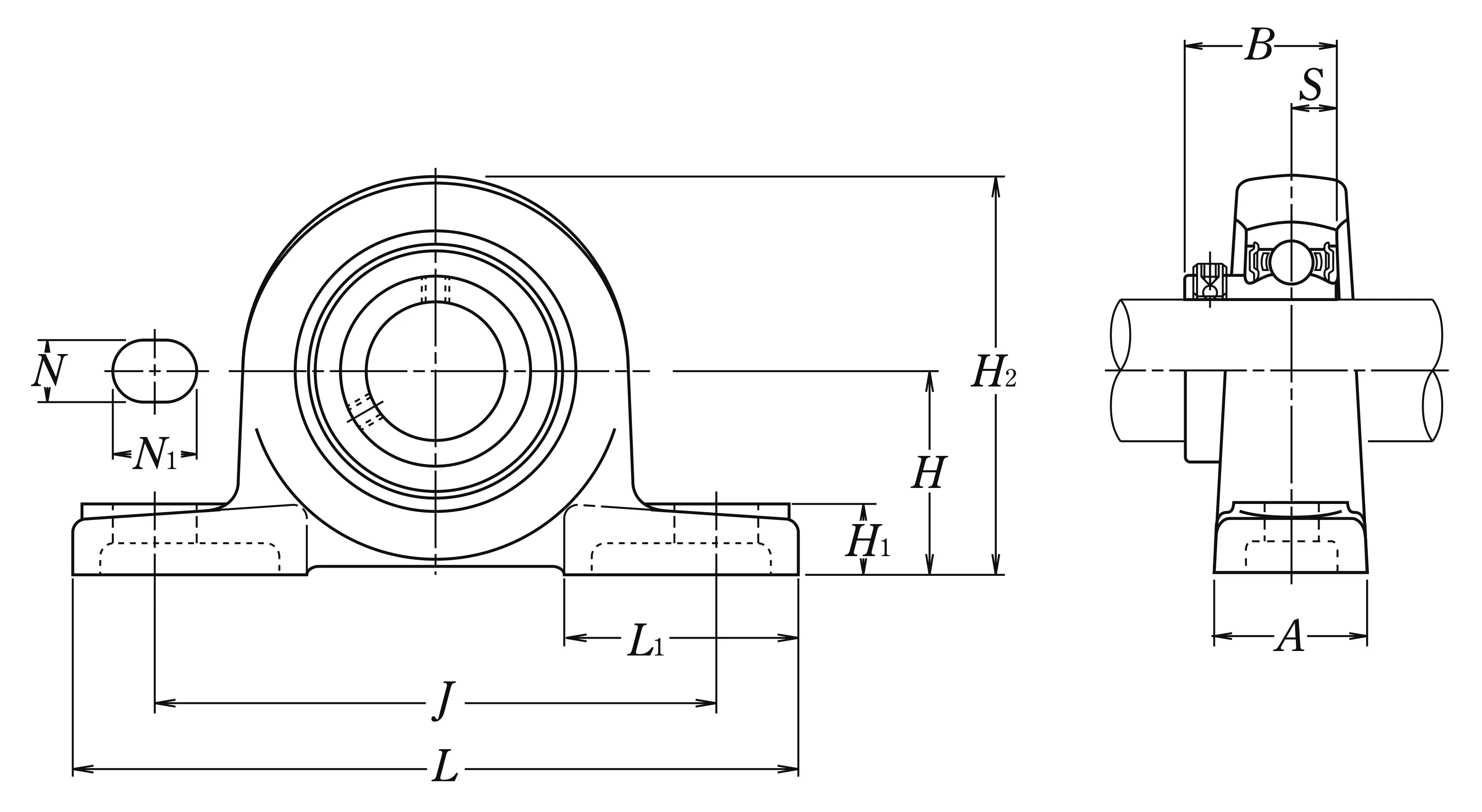

Nominal Dimensions

d	25	mm	Bore diameter
N1	16	mm	Length of attachment bolt hole
L	130	mm	Overall length
H	36.5	mm	Height of spherical seat centre
J	100	mm	Distance between attachment bolts
N	11	mm	Diameter of attachment bolt hole
A	29	mm	Base width
H1	13	mm	Distance between bottoms of piloting grooves
B	27	mm	Width of inner ring
S	7.5	mm	Distance from Opposite side face of locking device to raceway centre
L1	42	mm	Foot width
H2	71	mm	Overall height

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.6

kg

Mass approx.
