AELRPP205-

Designations

AELRPP205

Included products

Bearing	AEL205		Bearing
Housing	PP206		Housing
Rubber ring	R205		Rubber ring

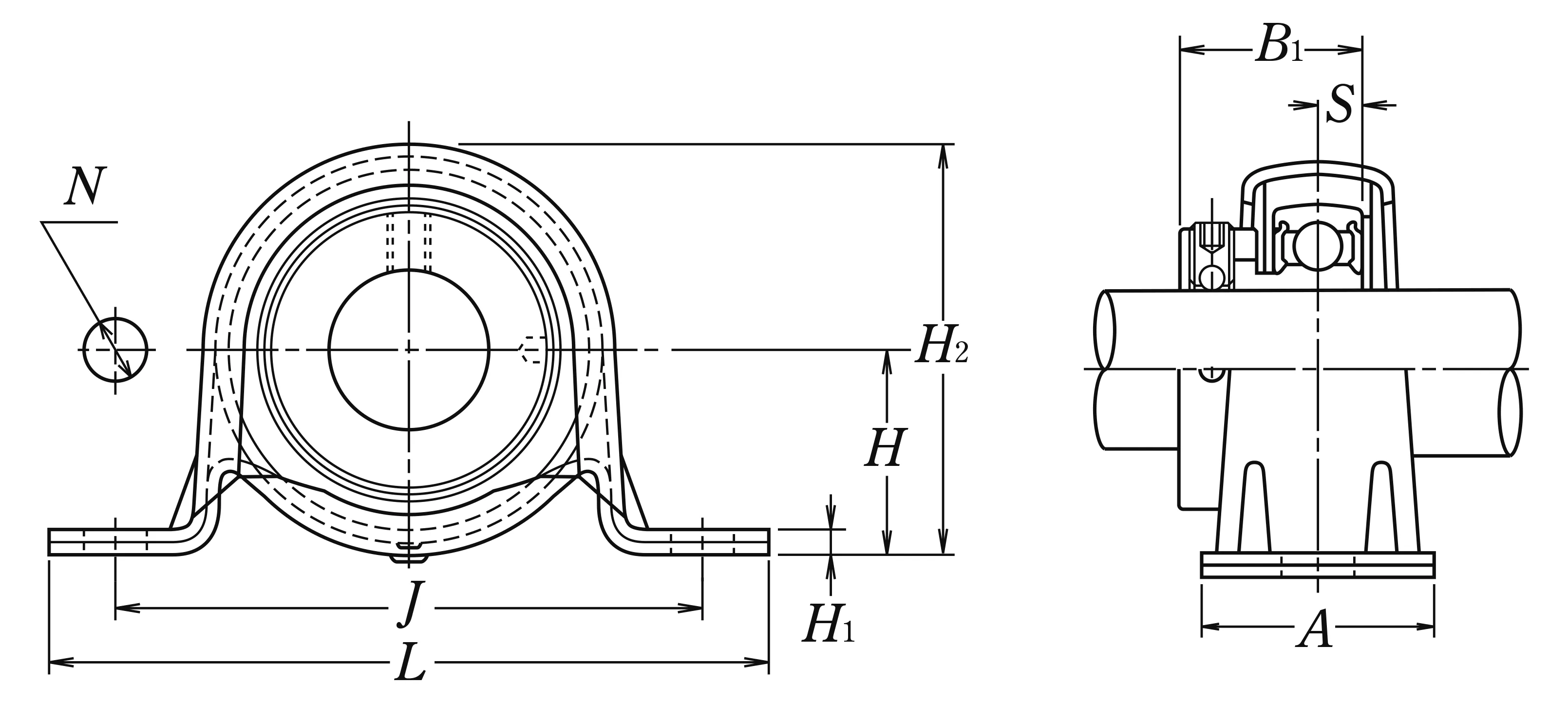

Nominal Dimensions

d	25	mm	Bore diameter
L	117	mm	Overall length
H	33.3	mm	Height of spherical seat centre
J	95	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A	38	mm	Base width
H1	4	mm	Distance between bottoms of piloting grooves
B1	31	mm	Width of inner ring
S	7.5	mm	Distance from Opposite side face of locking device to raceway centre
H2	66.3	mm	Overall height

Mounting information

G

M10

Bolt size

Permissible housing load

CR	1.3	kN	Radial
CA	0.2	kN	Axial

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.4

kg

Mass approx.
